Whirlpool Washing Machine Timer Motor Only

$94.94 NZD
+ GST
SKU: 02564

Delivery and Pick Up Information

Pick Up:

All orders are available for pick up. Pick up orders can be collected warehouse at Unit 6, 21 Poland Road, Wairau Valley, Auckland at no extra charge.

You will receive a second email when your order is ready for pick up, this is usually within 24 hours for in stock items, or as soon as your item arrives for backorder items (often 3 - 7 days).

Nationwide New Zealand Shipping:

Shipping is available nationwide and internationally. We ship with NZ Post and New Zealand Couriers and our average delivery time for orders in stock is 1 - 5 days, and 2 - 10 days for orders that are available with supplier.

Special Order products, such as those on backorder, have varying ETAs. Please contact us if you want to check before ordering. Some parts (that come from Europe, America, or other overseas locations) can take a little while.

International Orders:

We offer shipping to international locations but not all countries and products are supported. Generally, if you are an international customer and you can select your country and address at checkout, it means we can ship that product to you. Please get in touch with us if you want further information.

If you want to be 100% certain about an ETA for a product, just send us a quick email or call and we'll get back to you ASAP with our best estimate. Thanks!

Whirlpool Washing Machine Timer Motor suits 3952433 Timer.

Part No. WA3952433M.

Replacement timer motor to suit Whirlpool 3952433 timer. DON'T pay hundreds of dollars for the whole timer if this is all that is wrong.

Suits Whirlpool model 6LSR7244EQ1 & others.

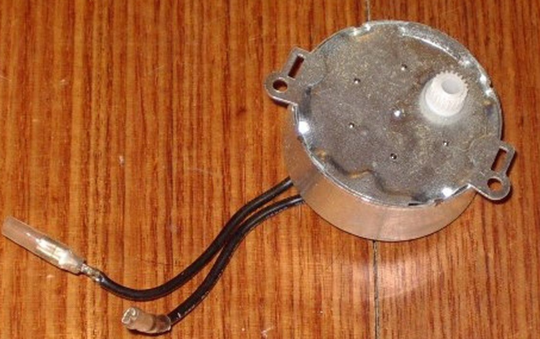

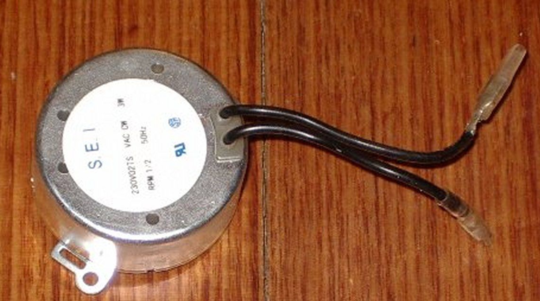

240VAC, 0.3WATT, 50HZ, 0.5RPM.

Drive gear has 20 teeth, turns clockwise & is 9MM diameter.

Fitted with 2.8MM spade terminals. Mounting either by clip on slots or offset holes 55M apart.

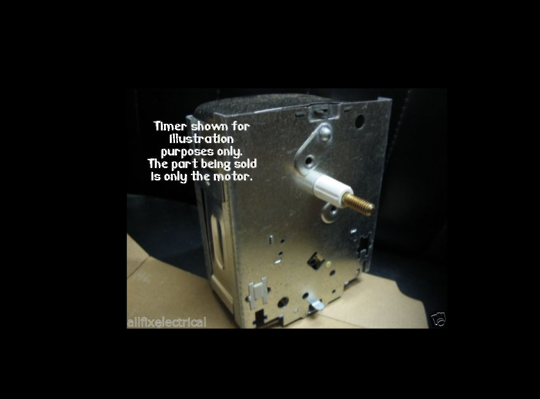

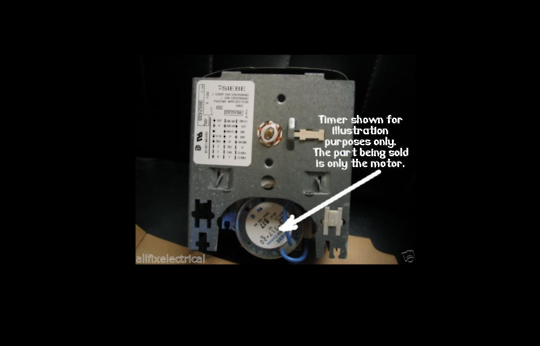

This listing is for the timer motor only. The pictures of the timer above are simply to illustrate the timer type that it suits.

Not this is not the only type of timer motor used on Whirlpool timers so if your timer number is different check carefully prior to purchasing that it is suitable. The only timer we can guarantee it being suitable for is the 3952433 part.

It is also important to make sure that the timer is not seized or very hard to turn as this can cause the timer motor to fail. If this is the case it is advisable to lubricate the cam mechanism & gears of the timer with an electrical grade CRC spray lubricant. Note, DO NOT spray all over the timer contacts and be sure to use a product with a low flash point as sparking contacts can ignite flammable sprays.
