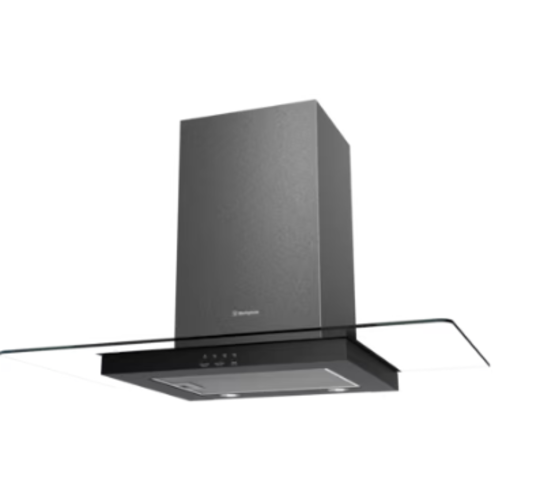

Electrolux Rangehood WRCG914BC 95600407500 Part Diagram
Inventory / Availability Status:
none
Delivery / Pick Up and Returns
Delivery / Pick Up and Returns
Pick Up:
All orders are available for pick up. Pick up orders can be collected warehouse at Unit 6, 21 Poland Road, Wairau Valley, Auckland at no extra charge.
You will receive a second email when your order is ready for pick up, this is usually within 24 hours for in stock items, or as soon as your item arrives for backorder items (often 3 - 7 days).
Nationwide New Zealand Shipping:
Shipping is available nationwide and internationally. We ship with NZ Post and New Zealand Couriers and our average delivery time for orders in stock is 1 - 5 days, and 2 - 10 days for orders that are available with supplier.
Special Order products, such as those on backorder, have varying ETAs. Please contact us if you want to check before ordering. Some parts (that come from Europe, America, or other overseas locations) can take a little while.
International Orders:
We offer shipping to international locations but not all countries and products are supported. Generally, if you are an international customer and you can select your country and address at checkout, it means we can ship that product to you. Please get in touch with us if you want further information.
If you want to be 100% certain about an ETA for a product, just send us a quick email or call and we'll get back to you ASAP with our best estimate. Thanks!
Returns:
If your order has not been picked up or shipped yet, you can cancel your order for a FULL REFUND.
If you have already received a part and it is incorrect or you no longer need it, you must let us know within 14 days of receiving your part.
NOTE FOR ALL RETURNS: You must notify us before sending a part back and get approval for returns. Parts that are sent back without notifying us in advance may not be approved for refund or return and you will be responsible for return shipping to get this part back to you.
We do not accept returns on electrical products, but on all other parts can offer exchange / refund. The parts must not be used, damaged, or opened (on parts in packaging) and may be subject to restocking fees of up to 20% (depending on the part).
If you have received a faulty or damaged product, we will always offer a replacement or refund depending on availability at not cost to you.
.png)
ITEM PART No. DESCRIPTION QTY
1 E653030 FILTER FRAME, PV METAL WITH NEUTRAL CLIP, 5 LAYERS 1
2 E601025 POWER CORD SAA (AUS)-HOOD-S FOR EHP 1
3 E611000 TERMINAL BLOCK 500/8 1
4 E607080 COVER, CONNECTION BOX 1
5 E621040 CAPACITOR 6.5UF 450V P2 1
6 N.P.A. COVER, FLUE LOWER HOOD 1
7 E607170 COVER, MOTOR LEFT (BETA INLET RING WITH GRILLE) 1
8 N.P.A. PV SWITCH BRACKET 1
9 E607375 PAD BUTTON SELECT (PLASTIC PANEL) 1
10 E607380 SHEET PROTECTION BUTTON SELECT. 1
11 N.P.A. BOX, SWITCH CONTROL 1
12 63905130 PCB SWITCH, CONTROL 1
13 N.P.A. COVER, SWITCH CONTROL 1
14 N.P.A. BODY, RANGEHOOD 1
15 E607410 AIR OUTLET, 150 IMPROVED OUTLET BASE (WITH BACK DRAUGHT) 1
16 E607210 ADAPTER 150 TO 120 REDUCER 1
17 E694155 PANEL, GLASS 1
18 E254005 KIT GLASS FIXING SCREWS (SCREW LENGTH=16MM) 4 set
19 E607400 LENS LIGHT STRIP CANOPY 1
20 C600015 BRACKET FIX COVER FLUE UPPER 1
21 E629465 DUCT COVER, UPPER 1
22 C600013 BRACKET FIX COVER FLUE SUPPORT 1
23 E629470 DUCT COVER, LOWER 1
24 15107000 HOLDER, LAMP HALOGEN 1
25 69412725 LED LAMP GU10-3.5W 1
26 E607075 FAN, TURBINE BLOWER (Part of 30) 1
27 64900330 MOTOR 230V/50HZ 330W (RESETTABLE FUSE) (Part of 30) 1
28 E629040 BRACKET MOTOR MOUNTING (Part of 30) 1
29 E607165 COVER MOTOR (RIGHT) (Part of 30) 1
30 26000920 MOTOR ASSEMBLY 230V/330W (RESET) (Inc: 26, 27, 28 & 29) 1
31 E251005
(AR610CF)
CHARCOAL FILTER (OPTIONAL) 2
32 AR610RK VENT RECIRCULATING KIT SET (OPTIONAL) 1
33 E607175 KIT RECIRCULATING TEE - PIECE (OPTIONAL) (Part of 32) 1
-
