Fisher & Paykel Elba Haier Oven Door Seal Gasket Original Saffron, Pepper, Oregano, Shacklock, Sage, Paprika, Tamarind 573263 Instalation Guide

SKU: 01710G
Inventory / Availability Status:
Read Only / Not for sale

Delivery / Pick Up and Returns

Pick Up:

All orders are available for pick up. Pick up orders can be collected warehouse at Unit 5, 3 William Pickering Drive, Albany, Auckland at no extra charge.

You will receive a second email when your order is ready for pick up, this is usually within 24 hours for in stock items, or as soon as your item arrives for backorder items (often 3 - 7 days).

Nationwide New Zealand Shipping:

Shipping is available nationwide and internationally. We ship with NZ Post and New Zealand Couriers and our average delivery time for orders in stock is 1 - 5 days, and 2 - 10 days for orders that are available with supplier.

Special Order products, such as those on backorder, have varying ETAs. Please contact us if you want to check before ordering. Some parts (that come from Europe, America, or other overseas locations) can take a little while.

International Orders:

We offer shipping to international locations but not all countries and products are supported. Generally, if you are an international customer and you can select your country and address at checkout, it means we can ship that product to you. Please get in touch with us if you want further information.

If you want to be 100% certain about an ETA for a product, just send us a quick email or call and we'll get back to you ASAP with our best estimate. Thanks!

Returns:

If your order has not been picked up or shipped yet, you can cancel your order for a FULL REFUND.

If you have already received a part and it is incorrect or you no longer need it, you must let us know within 14 days of receiving your part.

NOTE FOR ALL RETURNS: You must notify us before sending a part back and get approval for returns. Parts that are sent back without notifying us in advance may not be approved for refund or return and you will be responsible for return shipping to get this part back to you.

We do not accept returns on electrical products, but on all other parts can offer exchange / refund. The parts must not be used, damaged, or opened (on parts in packaging) and may be subject to restocking fees of up to 20% (depending on the part).

If you have received a faulty or damaged product, we will always offer a replacement or refund depending on availability at not cost to you.

Draft Service / Installation Guide: Oven Door Seal Replacement

For models RA6102, RA6101, RA & similar freestanding Fisher & Paykel / Elba ovens

Tools & Parts Needed

  • Replacement door seal / gasket (correct length and profile)

  • Phillips screwdriver (or appropriate bit)

  • Flat-head screwdriver or trim removal tool

  • Soft cloth / towels

  • Masking tape & marker (optional, to mark original position)

  • Protective gloves (optional)


Removal of Oven Door (needed)

  1. Open the oven door fully

  2. Gently lift and pull the door forward to release it from the hinge slot.


Accessing the Gasket / Seal

  1. On the inner face of the oven door, locate the retaining channel or groove where the gasket is seated

  2. Some models have screws or clips holding a trim or retainer piece that helps hold the gasket in place

  3. Remove any screws/clips carefully, photographing their original positions for reassembly




Removing Old Seal

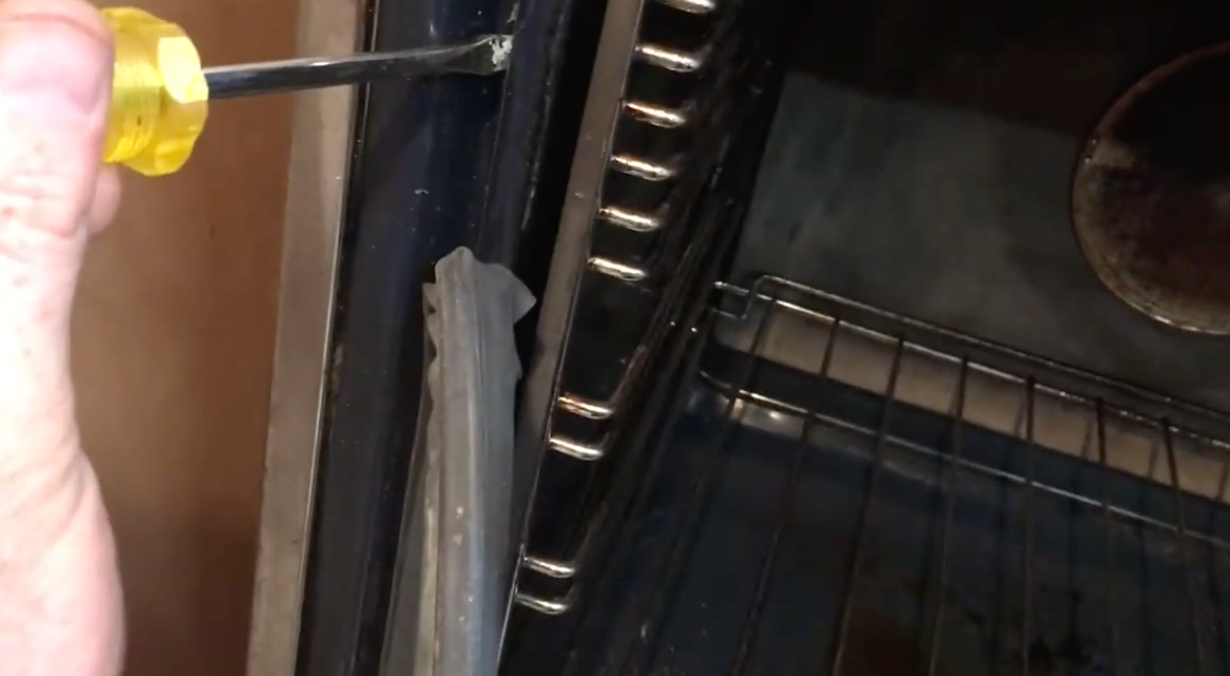

  1. Gently pull the gasket from its groove; it may come free with moderate force

  2. If clips are used, detach the gasket from clips

  3. Clean the groove/retaining channel (remove old adhesive, debris)


Installing New Seal

  1. Dry-fit the replacement seal around the door groove to check length and fit

  2. If the gasket is one continuous length, ensure the ends meet cleanly

  3. Press the gasket firmly into the groove, starting from one corner and working your way around

  4. If there are screws/clips/trim, reattach them to hold the gasket in place

  5. Use masking tape to temporarily hold the ends together if needed during installation

Suggested screenshot locations:

  • Seal being pressed into the groove

  • Close-up of gasket end-to-end meeting

  • Screws/clips being reinstalled


Reinstalling the Door

  1. Lift the door back onto its hinge slots (matching the locked positions)

  2. Unlock the hinge safety tabs so the door rests normally

  3. Open and close the door gently to confirm smooth operation and sealing


Final Check & Testing

  • Inspect the seal line for any gaps or mis-alignments

  • Run the oven at a moderate temperature and check for heat leakage

  • Make adjustments if small gaps are observed


Notes & Tips

  • The gasket usually seats in a push-in or press-in channel, rather than adhesive backing. Fixya

  • Always order the correct seal profile (shape, thickness) and length for the model

  • Photograph each step during removal to help with reassembly

  • Use a little soapy water or mild lubricant if the gasket is stiff, to ease fitting

  • If there is a drawer under the cooktop, pull it out to check for model or serial number info

RA6102, SAFFRON, PEPPER, OREGANO, SHACKLOCK, SAGE, PAPRIKA, TAMARIND, THYME, Cinnamon, Coriander, Oregano, Paprika, Pepper, Saffron, Sage, Thyme,
RA6102AW, RA6102B, RA6102MAW, RA6102MEDS, RA6102MEWC, RA6102AWC, RA6102BC, RA6102MAWS, RA6102MEW, RA6102MEWS, RA6103AW, RA6103AWC, RA6103AWP, RA6103B, RA6103BC, RA6103FAW, RA6103MAW, RA6103MAWS, RA6103MEDS, RA6103MEW, RA6103MEWC, RA6103MEWS, RA6102AW, RA6102MAW, RA6102MEWC, RA6102MEWS, RA6102, RA6102MEDS, RA6102FAW, RA6102MEW, RA6102AWP, RA6102AWC, RA6102MAWS, M6105AW, M6104EDS, FPRA610MAWS, RA6105WA, 6105WA, FPRA610PAW, HAIER HOR61S8CEWSW1,

OR61 & RA61 Series, Shacklock, Kelvinator & Frigidaire models
RA6102AW/MAW/MEWC/MEWS/MEDS/FAW/MEW/AWP/AWC/MAWS RA6102B/BC RA6103AW/B/MAW/MEWC/MEWS/MEDS/MEW/AWC/BC/MAWS OR61S2CAWSW/CAWW/CBW/CEWW OR61S4CAWW/CEWW OR61S8CEWW/CEWSW • Cinnamon, Sage, Paprika, Thyme, Tamarind, Pepper, Saffron, Oregano • RA6102B/BC • RA6103AW/B/MAW/MEWC/MEWS/MEDS/MEW­/AWC/BC/MAWS RA6102AW, RA6102B, RA6102MAW, RA6102MEDS, RA6102MEWC, RA6102AWC, RA6102BC, RA6102MAWS, RA6102MEW, RA6102MEWS, RA6103AW, RA6103AWC, RA6103AWP, RA6103B, RA6103BC, RA6103FAW, RA6103MAW, RA6103MAWS, RA6103MEDS, RA6103MEW, RA6103MEWC, RA6103MEWS, RA6102AW, RA6102MAW, RA6102MEWC, RA6102MEWS, RA6102, RA6102MEDS, RA6102FAW, RA6102MEW, RA6102AWP, RA6102AWC, RA6102MAWS, M6105AW, RA6102AW , 87634 , 87974, RA6102MAW, 87632 , 87972, RA6102MEWS , 87633 , 87973 610MTDS, 610MTWS, 661TW, 662XD, 663TWS, 664XDS, 661TW, 662XD, 663TWS, 664XDS, M6106ADR, M6106AWR, M6106ADS, M6106AWS, M6106EWS, M6106EDS, M6106EDR, M6106EWR, 651MAW, 652AD, 653AWS, 654ADS, 655EW, 656ED, 657EWS, 658EDS, 6106TR, 6106WAR, 640H, 641WA, 643MWA, M570A, M570AD, M570E, TM570, TM570D, TCM570, XM570, XM570D, XM570X, 751E, 752A, 754AD, 755T, 757TD, 758TC, 761X, 763XD, 767XX, 755T, 757TD, 758TC, 761X, 763XD, 767XX, TM570, TM570D, TM620, TM620D, TCM570, TCM620, WO570T, WO570TC, WO570TD, WO570X, WO570XD, XM570, XM570D, XM570X,
RA6102AW , 87634 , 87974, RA6102MAW, 87632 , 87972, RA6102MEWS , 87633 , 87973, 543AW, 544MAW, 545EW Manufactured between 1993-94 FP653AUS 87111,
610MTDS, 610MTWS, 661TW, 662XD, 663TWS, 664XDS, 661TW, 662XD, 663TWS, 664XDS, M6106ADR, M6106AWR, M6106ADS, M6106AWS, M6106EWS, M6106EDS, M6106EDR, M6106EWR, 651MAW, 652AD, 653AWS, 654ADS, 655EW, 656ED, 657EWS, 658EDS, 6106TR, 6106WAR, 640H, 641WA, 643MWA, M570A, M570AD, M570E, TM570, TM570D, TCM570, XM570, XM570D, XM570X, 751E, 752A, 754AD, 755T, 757TD, 758TC, 761X, 763XD, 767XX,
WO600E, WO570AD, FP544MAW, WO570TD, WOW0579A, WO570E, WO570T, WO570TC, WO570X, WO570XD, WO570ED,
755T, 757TD, 758TC, 761X, 763XD, 767XX, TM570, RA610MTDS, RA610MTWS, RA610MADS, RA610MAWS, RA610MEDS, RA610MEWS, RA610MAD, RA610PAW, RA610AWP, RA610AW, RA610EDS, RA610EWS, RA610MED, RA610MEW, RA610H,
TM570D, TM620, TM620D, TCM570, TCM620, WO570T, RA535MAW, RA535MEW, RA535AW, RA535EW, RA535N,
WO570TC, WO570TD, WO570X, WO570XD, XM570, M5357AWR, 5357AWR, M5357AWRM, M5357EWR, 544MAW, 545EW, 5357SR, 5357WAR, 541N, 542WA, 6105AW, 6105EW, 6105SA, 6105T, 6105WA, 6105WAF, 6105WAP, M6105ED, M6105EDS, M6105EW, M6105EWS, M6105WA,
XM570D, XM570X, 661TW, 662XD, 663TWS, 664XDS, M6106ADR, M6106AWR, M6106ADS, M6106AWS, M6106EWS, M6106EDS, M6106EDR, M6106EWR, 651MAW, 652AD, 653AWS, 654ADS, 655EW, 656ED, 657EWS, 658EDS, 6106TR, 6106WAR, 640H, 641WA, 643MWA,
FPRA6102MEWS, OR61S8, OR61S4, OR61S2 and more
Main oven door RA6102AW/MAW/MEWC/MEWS/MEDS/FAW/MEW/AWP/AWC/MAWS (Oregano, Paprika, Pepper, Sage, Saffron, Tamarind, Thyme)
RA6102B/BC, RA6103AW/B/MAW/MEWC/MEWS/MEDS/MEW/AWC/BC/MAWS, OR61S2CAWSW/CAWW/CBW/CEWW
OR61S4CAWW/CEWW, OR61S8CEWW/CEWSW, FPRA6102MEWC,
600MM wide Freestanding & pre 1998 Wall Ovens. No hooks in gasket, fits to body of oven, approx 1200MM long
OR61S2CEWW4 EL AA 85464-BOR61S2CEWW4 EL ,
OR61S4CEWW4 EL AA 85463-BOR61S4CEWW4 EL ,
OR61S8CEWSW4 EL AA 85465-BOR61S8CEWSW4 EL ,
OR61S2CEWW4 EL AA 85464-AOR61S2CEWW4 EL,
OR61S4CEWW4 EL AA 85463-AOR61S4CEWW4 EL,
OR61S8CEWSW4 EL AA 85465-AOR61S8CEWSW4 EL ,
OR61S2CEWW3 EL AA 85262-BOR61S2CEWW3 EL ,
OR61S4CEWW3 EL AA 85261-BOR61S4CEWW3 EL ,
OR61S8CEWSW3 EL AA 85260-BOR61S8CEWSW3 EL ,
OR61S2CEWW3 EL AA 85262-AOR61S2CEWW3 EL,
OR61S4CEWW3 EL AA 85261-AOR61S4CEWW3 EL ,
OR61S8CEWSW3 EL AA 85260-AOR61S8CEWSW3,
OR61S2CEWW4 EL AA 85464, OR61S2CEWW2
OR61S4CEWW4 EL AA 85463,
OR61S8CEWSW4 EL AA 85465,
OR61S2CEWW4 EL AA 85464,
OR61S4CEWW4 EL AA 85463,
OR61S8CEWSW4 EL AA 85465,
OR61S2CEWW3 EL AA 85262,
OR61S4CEWW3 EL AA 85261,
OR61S8CEWSW3 EL AA 85260,
OR61S2CEWW3 EL AA 85262,
OR61S4CEWW3 EL AA 85261,
OR61S8CEWSW3 EL AA 85260,
OR61S2CAWW2 EL NZ 89185,
OR61S4CAWW2 EL NZ 89186,
OR61S8CEWSW2 EL NZ 89187,
OR61S2CAWSW1 EL NZ 80550,
OR61S2CAWW1 EL NZ 80551,
OR61S2CBW1 EL NZ 80552,
OR61S4CAWW1 EL NZ 80553,
OR61S8CEWSW1 EL NZ 80555,
OR61S8CEWW1 EL NZ 80554,
FPRA535N, RAN595N,


Oregano, Paprika, Pepper, Sage, Saffron, Tamarind, Thyme

Fisher & Paykel ELBA HAIER Oven Door Seal Gasket ORIGINAL SAFFRON, PEPPER, OREGANO, SHACKLOCK, SAGE, PAPRIKA, TAMARIND_description(2)Fisher & Paykel ELBA HAIER Oven Door Seal Gasket ORIGINAL SAFFRON, PEPPER, OREGANO, SHACKLOCK, SAGE, PAPRIKA, TAMARIND_description(3)Fisher & Paykel ELBA HAIER Oven Door Seal Gasket ORIGINAL SAFFRON, PEPPER, OREGANO, SHACKLOCK, SAGE, PAPRIKA, TAMARIND_description(4)



573263, 461008 & 573242, 572633. SFP295,
