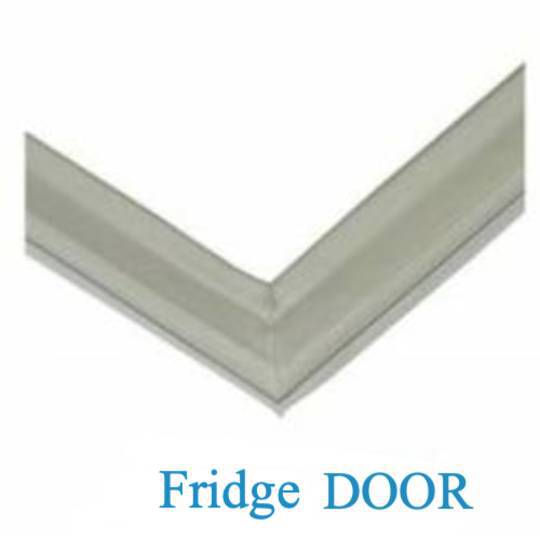

Fisher Paykel Fridge Door Seal Gasket for C450 E450, N388R, E388R, N388L, E388L

$89.00 NZD
+ GST
SKU: 02672
Inventory / Availability Status:
Available with supplier need to order 3-7 days to deliver

Delivery and Pick Up Information

Pick Up:

All orders are available for pick up. Pick up orders can be collected warehouse at Unit 6, 21 Poland Road, Wairau Valley, Auckland at no extra charge.

You will receive a second email when your order is ready for pick up, this is usually within 24 hours for in stock items, or as soon as your item arrives for backorder items (often 3 - 7 days).

Nationwide New Zealand Shipping:

Shipping is available nationwide and internationally. We ship with NZ Post and New Zealand Couriers and our average delivery time for orders in stock is 1 - 5 days, and 2 - 10 days for orders that are available with supplier.

Special Order products, such as those on backorder, have varying ETAs. Please contact us if you want to check before ordering. Some parts (that come from Europe, America, or other overseas locations) can take a little while.

International Orders:

We offer shipping to international locations but not all countries and products are supported. Generally, if you are an international customer and you can select your country and address at checkout, it means we can ship that product to you. Please get in touch with us if you want further information.

If you want to be 100% certain about an ETA for a product, just send us a quick email or call and we'll get back to you ASAP with our best estimate. Thanks!

Fridge/Freezer Gasket Installation Instructions

Push-In Type (No Screws or Metal Bar Holding Seal in Place)
Dimensions: 635MM x 1626MM

Installation Steps:

  1. Fit the New Seal:
    Carefully push the new gasket into place around the fridge or freezer door. Make sure the seal is securely seated in the groove without any gaps.

  2. Reshape the Seal:
    After fitting the seal, it will need to be reshaped for a proper fit. Use a hair dryer (not a heat gun) to warm the gasket and make it more flexible. First, while the door is open, gently heat the inner side of the seal. This will allow it to adjust to the door frame. Then, close the door and begin heating the seal from one corner. Move the hair dryer in a sweeping motion, applying heat evenly to the entire seal.

  3. Assist the Seal’s Magnetization:
    In some areas, you may need to help the seal adhere to the door frame. Use a wooden stick or a similar tool to gently press the seal towards the cabinet while continuing to apply heat. This will help the magnet inside the seal to properly bond with the metal door frame.

  4. Let the Seal Set:
    Once you’ve applied heat and adjusted the seal, do not open the door for at least two hours. This allows the gasket to fully reshape and settle into place.

Suits the following Models:

C450L D FP WH 12 20694-D C450LMD FP SM 12 21201-D C450LMFD D FP SM 12 21948-B C450LXFD D FP SX 12 21988-B C450R D FP WH 12 20693-D C450RMD FP SM 12 21200-D C450RMFD D FP SM 12 21947-B C450RXFD D FP SX 12 21987-B C450LXFD D FP SX 12 21988-A C450RMFD D FP SM 12 21947-A C450RXFD D FP SX 12 21987-A C450L D FP WH 12 20694-C C450LMD FP SM 12 21201-C C450LMFD D FP SM 12 21948-A C450R D FP WH 12 20693-C C450RMD FP SM 12 21200-C C450L D FP WH 12 20694-B C450LMD FP SM 12 21201 C450LMD FP SM 12 21201-B C450R D FP WH 12 20693-B C450RMD FP SM 12 21200 C450RMD FP SM 12 21200-B Series B&D Cyclic 635 517716, E450RXFD3 FP SG HK 25669-A E450LW1 FP AA 24855-A E450LXFD1 FP AA 25549-A E450RXFD1 FP AA 25550-A E450RXFD2 FP SG/HK 25275-A E450LXFD1 FP AA 25122-A E450RXFD1 FP AA 25121-A E450LW1 FP AA 25051-A E450RW1 FP AA 25049-A E450RSFD1 FP PH 24856-A E450RXFD2 FP HK 24857-A E450RXFD2 FP SG 24860-A E450LXFD1 FP AA 24854-A E450RXFD1 FP AA 24853-A E450RW1 FP AA 24852-A E450L D FP WH 23957-A E450R D FP WH 23960-A E450VRW1 FP NZ 22558-A E450LMFD D FP SM 22103-K E450RMFD D FP SM 22102-L E450L D FP WH 12 22101-H E450LXFD D FP SX 22107-J E450R D FP WH 12 22100-H E450RXFD D FP SX 22106-J E450RMFD D FP SM 22102-K E450RXFD D FP SX 18 22308-D E450L D FP WH 12 22101-G E450LXFD D FP SX 22107-I E450R D FP WH 12 22100-G E450LMFD D FP SM 18 22307-C E450LXFD D FP SX 18 22309-C E450RXFD D FP SX 22106-I E450RMFD D FP SM 18 22306-C E450RXFD D FP SX 18 22308-C E450L D FP WH 12 22101-F E450LMFD D FP SM 22103-I E450LXFD D FP SX 22107-H E450R D FP WH 12 22100-F E450RMFD D FP SM 22102-J E450RXFD D FP SX 22106-H E450LMFD D FP SM 22103-H E450LXFD D FP SX 22107-G E450RMFD D FP SM 22102-I E450RXFD D FP SX 22106-G E450L D FP WH 12 22101-E E450LMFD D FP SM 12 22103-G E450LXFD D FP SX 22107-F E450R D FP WH 12 22100-E E450RMFD D FP SM 22102-H E450RXFD D FP SX 22106-F E450L D FP WH 12 22101-D E450LMFD D FP SM 12 22103-F E450LXFD D FP SX 12 22107-E E450R D FP WH 12 22100-D E450RMFD D FP SM 22102-G E450RXFD D FP SX 12 22106-E E450RMFD D FP SM 12 22102-F E450LMFD D FP SM 12 22103-E E450RMFD D FP SM 12 22102-E E450L D FP WH 12 22101-C E450LMFD D FP SM 12 22103-D E450LXFD D FP SX 12 22107-D E450R D FP WH 12 22100-C E450RMFD D FP SM 12 22102-D E450RXFD D FP SX 12 22106-D E450LMFD D FP SM 12 22103-C E450LXFD D FP SX 12 22107-C E450RXFD D FP SX 12 22106-C E450RMFD D FP SM 12 22102-C E450L D FP WH 12 22101-A E450L D FP WH 12 22101-B E450LMFD D FP SM 12 22103-A E450LMFD D FP SM 12 22103-B E450LXFD D FP SX 12 22107-A E450LXFD D FP SX 12 22107-B E450R D FP WH 12 22100-A E450R D FP WH 12 22100-B E450RMFD D FP SM 12 22102-A E450RMFD D FP SM 12 22102-B E450RXFD D FP SX 12 22106-A E450RXFD D FP SX 12 22106-B, VERTFREEZ E388LXFD3 FP SG HK 25670-A E388LXFD1 FP AA 25502-A E388RXFD1 FP AA 25505-A E388LXFD2 FP HK 25276-A E388LXFD1 FP AA 25124-A E388RXFD1 FP AA 25123-A E388LW1 FP AA 25054-A E388RW1 FP AA 25053-A E388LW1 FP AA 24868-A E388RW1 FP AA 24867-A E388LXFD1 FP AA 24866-A E388RXFD1 FP AA 24865-A E388L D FP WH 23961-A E388R D FP WH 23964-A E388LMFD D FP SM 22021-D E388LXFD D FP SX 22019-C E388RMFD D FP SM 22020-D E388RXFD D FP SX 22018-C E388LMFD D FP SM 22021-C E388RMFD D FP SM 22020-C E388LMFD D FP SM 22021-B E388LXFD D FP SX 22019-B E388RMFD D FP SM 22020-B E388RXFD D FP SX 22018-B E388L D FP WH 18 22017-A E388LMFD D FP SM 22021-A E388LXFD D FP SX 22019-A E388R D FP WH 22133-A E388RMFD D FP SM 22020-A E388RXFD D FP SX 22018-A, N388LXFD D FP SX 21986-A N388LMFD D FP SM 21946-A N388RMFD D FP SM 21945-A N388LM D FP SM 12 21203 N388RM D FP SM 12 21202 Series B&D 635 Vertical Freezer 517706 N388 517704 N388RXFD D FP SX 21985-A, Fsuits Fridge E450R, E450L, RF450SRDW, RF450SLDW, RF388FRDW, RF388FLDW, suits Freezer E388L, E388R, and some of N388 and C450,



We stronglyrecommend for you to remove your faulty part and compare it with the model number, photos, or dimensions above to ensure you are purchasing the correct part. If you are not sure if it is the correct part, please DON'T hesitate to contact us atinfo@homeappliancesonline.co.nzor by using the 'CONTACT US' page of our website and we will reply back to you ASAP letting you know what part you should purchase.

If you purchase the wrong part, we do accept returns but there will be a 20% restocking fee.








845424P, 818949P
