Fisher Paykel Haier Dryer Bearing Drum

$21.00 NZD
+ GST
SKU: FPH19867
Inventory / Availability Status:
In Stock 1 - 5 Days to Deliver

Delivery / Pick Up and Returns

Pick Up:

All orders are available for pick up. Pick up orders can be collected warehouse at Unit 5, 3 William Pickering Drive, Albany, Auckland at no extra charge.

You will receive a second email when your order is ready for pick up, this is usually within 24 hours for in stock items, or as soon as your item arrives for backorder items (often 3 - 7 days).

Nationwide New Zealand Shipping:

Shipping is available nationwide and internationally. We ship with NZ Post and New Zealand Couriers and our average delivery time for orders in stock is 1 - 5 days, and 2 - 10 days for orders that are available with supplier.

Special Order products, such as those on backorder, have varying ETAs. Please contact us if you want to check before ordering. Some parts (that come from Europe, America, or other overseas locations) can take a little while.

International Orders:

We offer shipping to international locations but not all countries and products are supported. Generally, if you are an international customer and you can select your country and address at checkout, it means we can ship that product to you. Please get in touch with us if you want further information.

If you want to be 100% certain about an ETA for a product, just send us a quick email or call and we'll get back to you ASAP with our best estimate. Thanks!

Returns:

If your order has not been picked up or shipped yet, you can cancel your order for a FULL REFUND.

If you have already received a part and it is incorrect or you no longer need it, you must let us know within 14 days of receiving your part.

NOTE FOR ALL RETURNS: You must notify us before sending a part back and get approval for returns. Parts that are sent back without notifying us in advance may not be approved for refund or return and you will be responsible for return shipping to get this part back to you.

We do not accept returns on electrical products, but on all other parts can offer exchange / refund. The parts must not be used, damaged, or opened (on parts in packaging) and may be subject to restocking fees of up to 20% (depending on the part).

If you have received a faulty or damaged product, we will always offer a replacement or refund depending on availability at not cost to you.

Original Fisher & Paykel Haier Dryer Bearings Replacement

Compatible with the following models:

Fisher & Paykel Dryers 92291-A DH9060P2

Fisher & Paykel Dryers 93289-A DH9060PG2

Fisher & Paykel Dryers 93283-A DH9060FS1

Fisher & Paykel Dryers 93281-A DH8060P3

DH8060T3 DH9060P2 (92291-A) HDHP80A1 (61433-A)

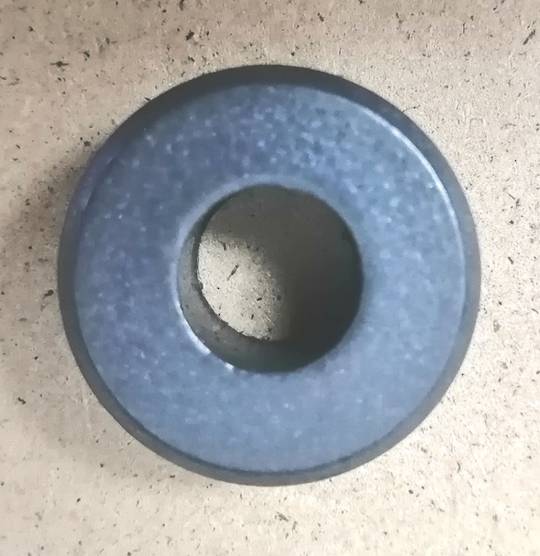

The Black Carbon Bearind is replaced with this kit

Markdown version

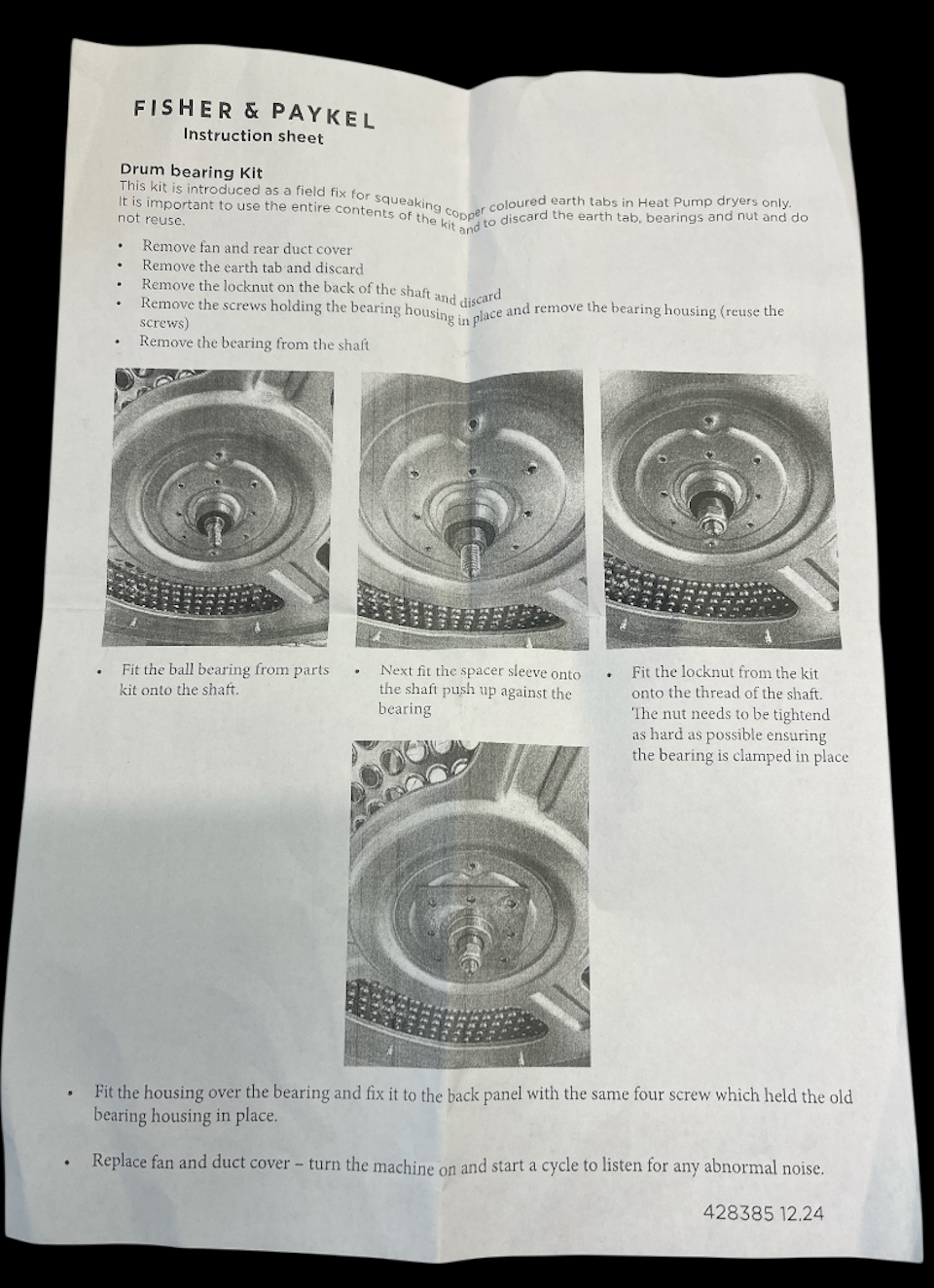

Fisher & Paykel Heat-Pump Dryer Drum Bearing Kit – Fix Squeaking From Earth Tabs (Instruction 428385 12.24)

Summary: If your F&P heat-pump dryer squeaks from the rear of the drum, the cause is often the copper-coloured earth tabs rubbing. Fisher & Paykel’s Drum Bearing Kit replaces the old parts and stops the noise. This guide follows the official instruction sheet 428385 (rev. 12.24), with extra tips for a faster, safer install.

Works for

  • Fisher & Paykel Heat Pump dryers only where copper earth tabs are present and squeaking.

  • Use the entire contents of the kit. Do not reuse the old earth tab, bearing or locknut.

Important: This is a field fix. If your model differs, email us a photo of the model/serial label and the back-panel area for confirmation before ordering.

Symptoms

  • Persistent squeak/screech from the rear of the drum

  • Noise improves briefly after a cycle or when warm, then returns

  • Wear marks on copper earth tabs

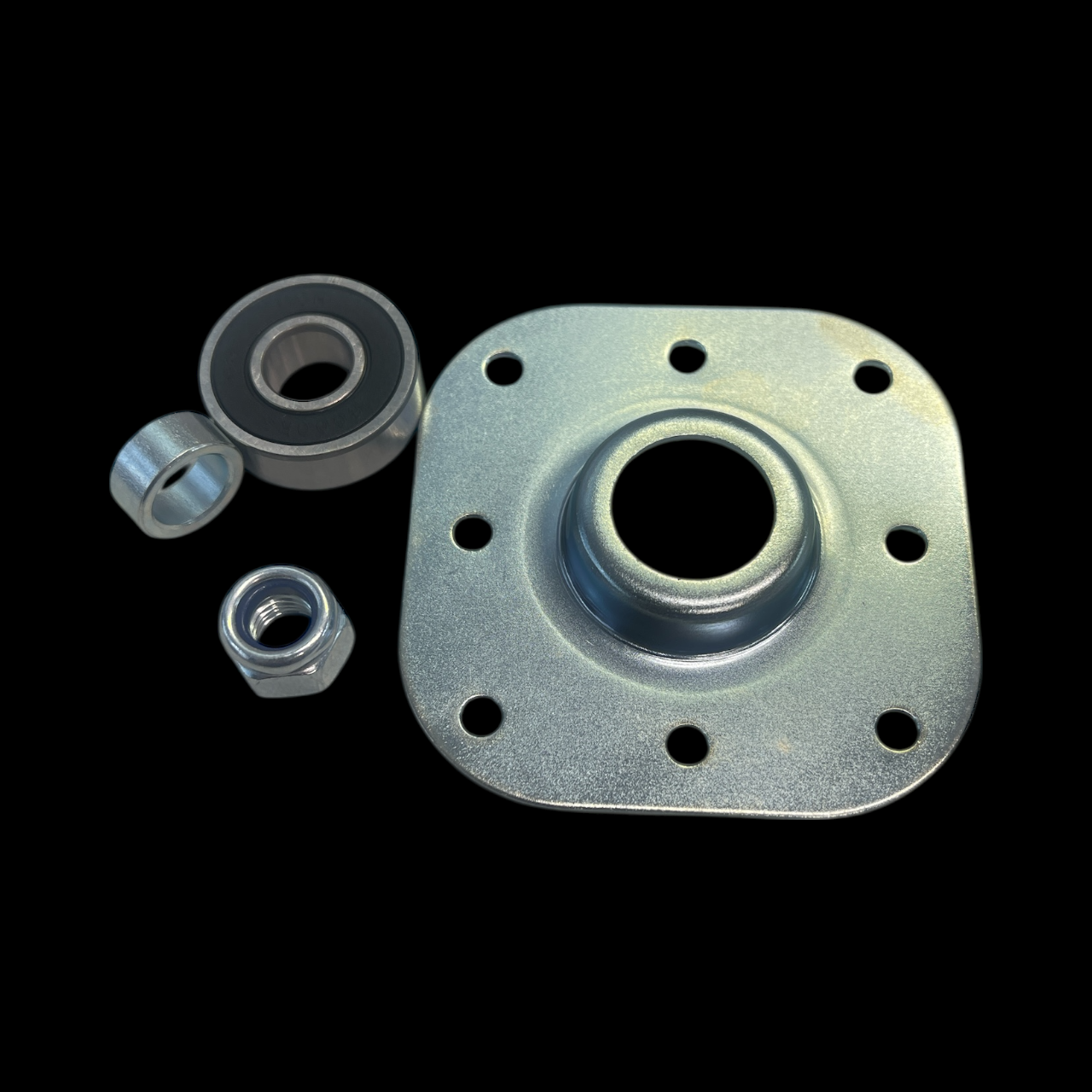

What’s in the kit (typical)

  • New ball bearing

  • Spacer sleeve

  • Locknut

  • Updated bearing housing (reuses the four original screws)

Tools you’ll need

  • Phillips screwdriver / nut driver

  • Small socket or spanner for the locknut

  • Torx driver (some models)

  • Gloves & eye protection

Step-by-step (based on 428385 12.24)

  1. Power off and unplug the dryer.

  2. Remove the fan and rear duct cover.

  3. Remove the earth tab and discard it.

  4. Remove the locknut on the back of the shaft and discard it.

  5. Remove the four screws holding the bearing housing. Take off the housing (keep the screws).

  6. Slide the old bearing off the shaft.

  7. Fit the new ball bearing from the kit onto the shaft.

  8. Fit the spacer sleeve next, pushing it up against the bearing.

  9. Fit the new locknut from the kit onto the shaft thread and tighten as hard as possible so the bearing is firmly clamped in place.

  10. Install the new housing over the bearing and fix it to the back panel using the same four screws you removed earlier.

  11. Refit the fan and duct cover.

  12. Test: Power on and run a cycle. Listen for any abnormal noise.

Tip: If a squeak remains, re-check the locknut torque and that the spacer is fully seated against the bearing.

After-install checks

  • Drum turns freely by hand with no scraping/squeak

  • Rear housing sits flush; all four screws torqued evenly

  • No rubbing around the fan/duct cover

Safety & warranty notes

  • Always unplug the appliance before servicing.

  • If the shaft shows scoring or play, additional parts may be required.

  • Follow ESD precautions when working near control boards.

FAQs

Does this kit fit condenser or vented dryers?
No—this field fix is for heat-pump models with copper earth tabs.

Can I reuse my old locknut/earth tab?
No. The instruction specifies discard and replace with the kit parts.

I still hear noise after fitting.
Re-check that the bearing is fully clamped (locknut tight), the spacer is against the bearing, and the housing screws are evenly tightened.










H0180200486 428386P
