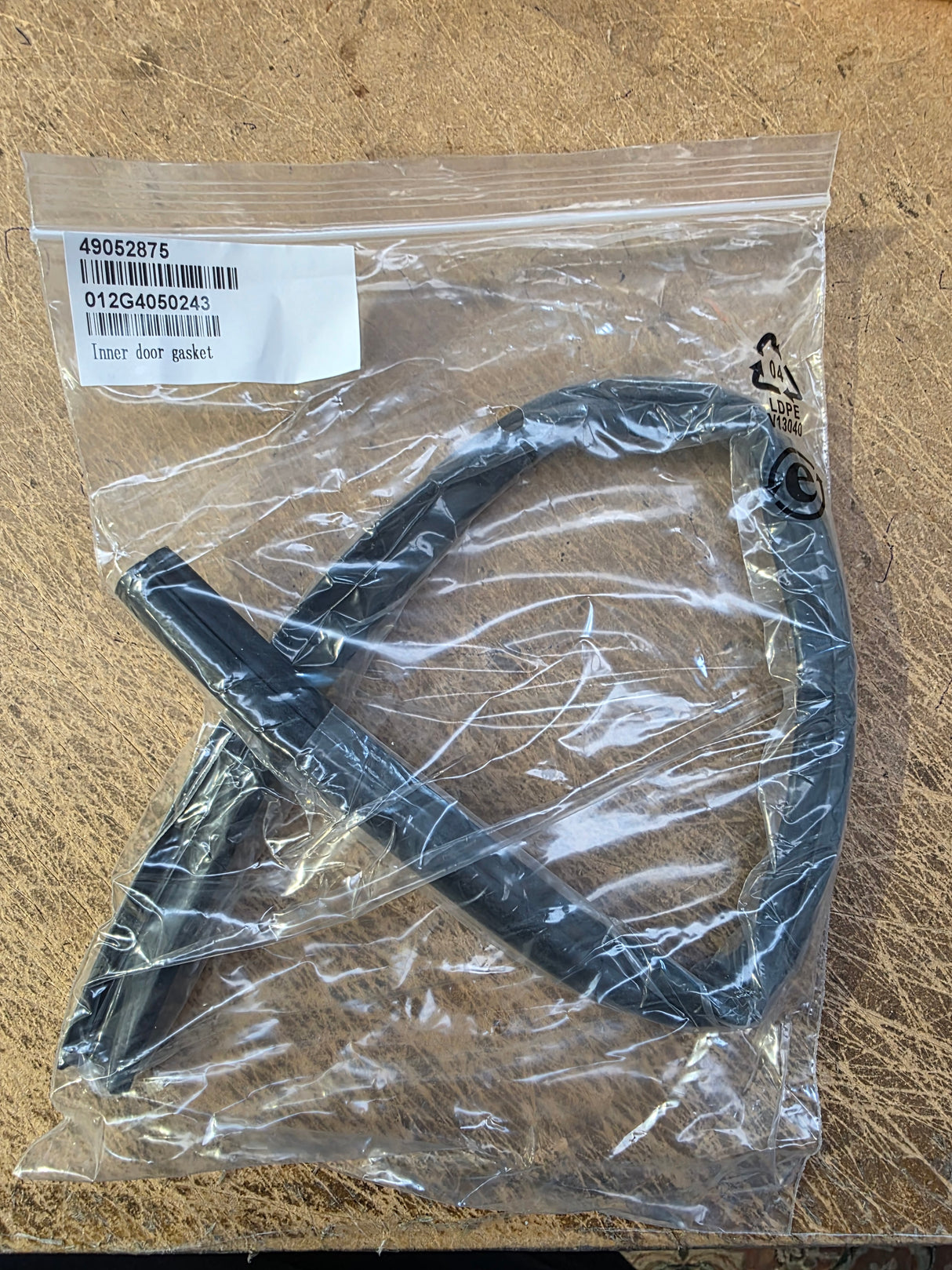

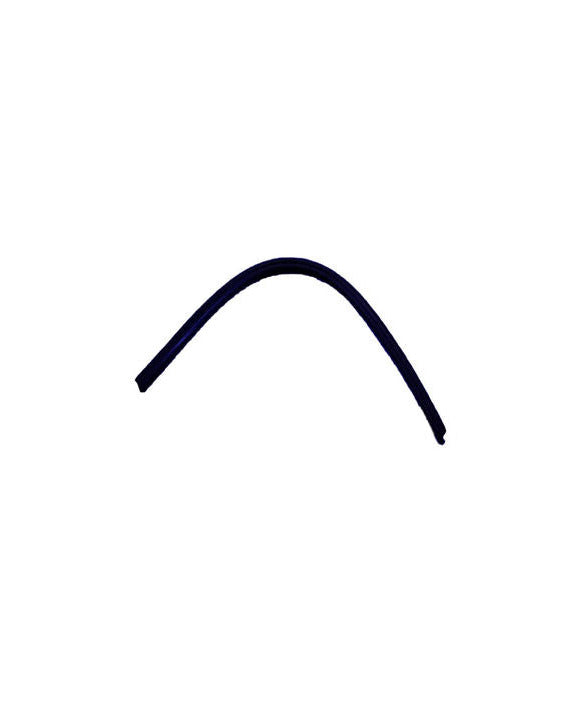

Fisher & Paykel Haier Freestanding Dishwasher Lower Door Seal - H012G4050243

$23.85 NZD
+ GST
SKU: 11396
Inventory / Availability Status:
In Stock 1 - 5 Days to Deliver

Delivery and Pick Up Information

Pick Up:

All orders are available for pick up. Pick up orders can be collected warehouse at Unit 6, 21 Poland Road, Wairau Valley, Auckland at no extra charge.

You will receive a second email when your order is ready for pick up, this is usually within 24 hours for in stock items, or as soon as your item arrives for backorder items (often 3 - 7 days).

Nationwide New Zealand Shipping:

Shipping is available nationwide and internationally. We ship with NZ Post and New Zealand Couriers and our average delivery time for orders in stock is 1 - 5 days, and 2 - 10 days for orders that are available with supplier.

Special Order products, such as those on backorder, have varying ETAs. Please contact us if you want to check before ordering. Some parts (that come from Europe, America, or other overseas locations) can take a little while.

International Orders:

We offer shipping to international locations but not all countries and products are supported. Generally, if you are an international customer and you can select your country and address at checkout, it means we can ship that product to you. Please get in touch with us if you want further information.

If you want to be 100% certain about an ETA for a product, just send us a quick email or call and we'll get back to you ASAP with our best estimate. Thanks!

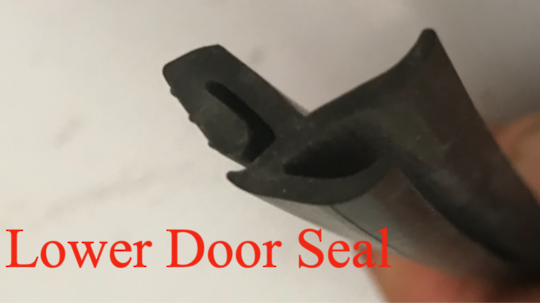

ORIGINAL Replacement Dishwasher Lower Door Seal / Gasket for Fisher & Paykel and Haier Freestanding Dishwashers

Fits the following models
DW60CDW2, DW60CDX2, DW12-TFE2SS, DW12-TFE4WH, DW12-TFE4SS, HDW12-TFE3SS, HDW12-TFE3WH, DW60CDW3, DW60CDX3, DW60CSW1, DW60, DW60CSX1, DW60CDW1, DWCDX1, DW60CS, DW60CD, DW60CEW1, DW60CEX1, DW60CCW1, DWCCX1, HDW153G3X, HDW153G3W, DW60CHPX1, DW60CHPW1, DW60CKX1, DW60CKX1, HDW12-SFE1, HDW12-SFE3, DW60CDW2, HDW100WCT, HDW100SCT, DW60CRX2,DW60CRX3, DW60CRX4, DW60CRW3, DW12-TFE2WH, WQP12-AFM, WQP12-AFM-AFM2,
Delonghi DW47S, DW47W,
Classique Baumatic Dishwasher Lower Door Seal CLD60SS, CLD60W BKD62W.3, BKDW60W, BKDW60SS,
Belini BDWM126W-F BDW86S & BDW86W ODW702X ODW707X ODW717X DWF146OLD

Fisher & Paykel Haier Freestanding Dishwasher Lower Door Seal,_description(1)Fisher & Paykel Haier Freestanding Dishwasher Lower Door Seal,_description(2)
HDW201WH, HDW201SS, HDW100SST, WQP12AFM, 61505, 61509, 61515, 61516,
61579, HDW12-TFE3SS, 61580, HDW12-SFE3WH, 61581, HDW12-TFE3WH, 61584, HDW12-SFE3SS, 80752, DW60CEX1, 80753, DW60CCW1, 80754, DW60CCX1, 80914, DW60CHW1, 80915, DW60CHX1, 80916, DW60CHPW1, 80917, DW60CHPX1, 80918, DW60CKW1, 80919, DW60CKX1, 81123, DW60FC2W1, 81124, DW60FC2X1, 81125, DW60FC4W1, 81126, DW60FC4X1, 81129, DW60FC1X1, 81130, DW60FC1W1, 81264, DW60FEX1, 81632, DW60FC4X1, 81633, DW60FC4W1, 81634, DW60FC2X1, 81635, DW60FC2W1, 81636, DW60FC1W1, 81130, DW60FC1W1, 81264, DW60FEX1, 81632, DW60FC4X1, 81633, DW60FC4W1, 81634, DW60FC2X1, 81635, DW60FC2W1, 81636, DW60FC1W1, 81637, DW60FC1W1, 85185, DW60CDW3, 85186, DW60CDX3, DW60CDX2, DW60CDW2, DW60CSW1, DW60CSW2, DW60CDW1, DW60CDW2, DL06-07SS, DW60CDX 2 EL NZ: 89137-A, DW60, HDW9, HDW12, DW12,HDW300, HDW20, HDW101, HDW100, DW60CSX1, DW60CSX2, DW60CEX1

OFI604A BFD645X, IVDB1 DWF614WE ED-D60CM14 DW60CRW2



How to Replace the Lower Door Seal on Fisher & Paykel and Haier Dishwashers

Replacing the lower door seal is a straightforward process. Follow these steps for a successful replacement:

Tools Needed:

  • Screwdriver (usually Phillips)
  • Replacement door seal

Steps:

  1. Unplug the Dishwasher:

    • Ensure the dishwasher is unplugged from the power source for safety.

  2. Remove the Front Cover:

    • Unscrew the eight screws that hold the front cover of the dishwasher door from the inner door section. Carefully detach the front panel.

  3. Remove the Top Control Panel:

    • If applicable, remove the screws or clips securing the top control panel and carefully lift it away.

  4. Remove the Hinge Screws:

    • Unscrew the screws that secure the hinge to the inner door. This may require holding the door at an angle.

  5. Move the Inner Door:

    • Carefully move the inner door to a flat, stable surface (like a workbench) for easier access.

  6. Remove the Old Seal:

    • Partially open the clip that holds the seal in place and gently pull out the old seal.

  7. Install the New Seal:

    • Position the new door seal in the designated groove. Ensure it is seated properly.

  8. Secure the Seal:

    • Press the clips back into place to secure the new seal.

  9. Reassemble the Dishwasher:

    • Return the inner door to its original position and reattach the hinge screws.
    • Reinstall the top control panel and front cover, securing with screws.

  10. Test the Dishwasher:

  • Plug the dishwasher back in and run a short cycle to check for any leaks.

By following these steps, you should be able to successfully replace the lower door seal on your Fisher & Paykel or Haier dishwasher. If you encounter any issues, refer to your user manual for specific instructions related to your model.



We highly recommend that you remove the faulty part and conduct a thorough comparison with the model number, photo, and dimensions provided above. If your model number is not listed, the part you have differs from the photo provided, or you are uncertain, kindly send your inquiry via email toinfo@homeappliancesonline.co.nz. We will respond promptly and provide you with the appropriate part.

Please note that selecting the wrong part is possible, but it may incur a 20% restocking fee imposed by the supplier, which will be passed on to you.






lowerdoorseal, bottomdoorseal, 672002200324 h012g4050243
