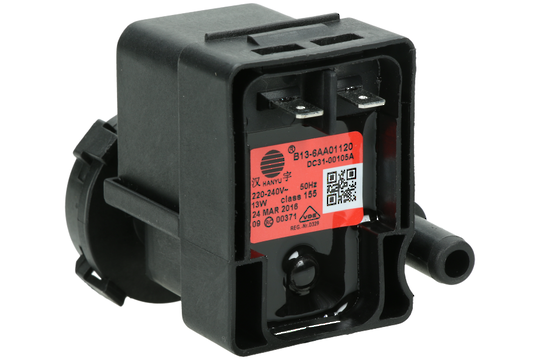

Samsung Dryer Drain Pump DC31-00105A – B13-6AA01120

$59.00 NZD
+ GST
SKU: 13345
Inventory / Availability Status:
In Stock: 1 - 5 Days to Deliver

Delivery / Pick Up and Returns

Pick Up:

All orders are available for pick up. Pick up orders can be collected warehouse at Unit 5, 3 William Pickering Drive, Albany, Auckland at no extra charge.

You will receive a second email when your order is ready for pick up, this is usually within 24 hours for in stock items, or as soon as your item arrives for backorder items (often 3 - 7 days).

Nationwide New Zealand Shipping:

Shipping is available nationwide and internationally. We ship with NZ Post and New Zealand Couriers and our average delivery time for orders in stock is 1 - 5 days, and  2 - 10 days for orders that are available with supplier.

Special Order products, such as those on backorder, have varying ETAs. Please contact us if you want to check before ordering. Some parts (that come from Europe, America, or other overseas locations) can take a little while.

International Orders:

We offer shipping to international locations but not all countries and products are supported. Generally, if you are an international customer and you can select your country and address at checkout, it means we can ship that product to you. Please get in touch with us if you want further information.

If you want to be 100% certain about an ETA for a product, just send us a quick email or call and we'll get back to you ASAP with our best estimate. Thanks!

Returns:

If your order has not been picked up or shipped yet, you can cancel your order for a full refund.

If you have already received a part and it is incorrect or you no longer need it, you must let us know within 14 days of receiving your part.

NOTE FOR ALL RETURNS: You must notify us before sending a part back and get approval for returns. Parts that are sent back without notifying us in advance may not be approved for refund or return and you will be responsible for return shipping to get this part back to you.

We do not accept returns on electrical products, but may offer exchange / refund on other parts. The parts must not be used, damaged, or opened (on parts in packaging) and will be subject to restocking fees of 20% (depending on the part). This fee applies to all returns.

If you have received a faulty or damaged product, we will always offer a replacement (or refund depending on availability) at no cost to you.

Backorder Items:

As there are 100,000+ different SKUs we are able to source, we are unfortunately not able to stock all the parts that customers may need. Many parts will have to be ordered in from their respective suppliers and have varying lead times depending on the brand and part. For most parts, this is about 2 - 7 working days, however for some international brands or parts which are on backorder, there can be an extended lead time of 2 - 12+ weeks. If you are not happy to wait for your order, please get in touch with us and we can give you an ETA or cancel/refund your order for you right away.

Search description

Type your model number to search our description and see whether it is listed as compatible with this part.

Replace a faulty condensate drain pump in selected Samsung tumble dryers with the DC31-00105A replacement pump. This pump transfers collected condensation through the dryer’s water collection or drainage system.

Part number: DC31-00105A
Pump reference: B13-6AA01120
Part type: Dryer condensate drain pump

Key Features

  • Replacement drain pump for selected Samsung dryers.
  • Transfers condensation from the collection sump.
  • For replacement of the matching existing pump.
  • Check the appliance model, original pump label, electrical rating, connections and mounting points before ordering.
  • Common Signs You May Need a Replacement
  • Water remains in the collection sump instead of being pumped away.
  • The dryer stops with a drainage warning.
  • The pump hums but does not move water.
  • The pump is unusually noisy or does not operate when required.
  • Water fails to reach the collection tank despite condensation accumulating below.

These symptoms can also result from blocked hoses, debris, float or level-sensing faults, damaged wiring or control faults. Confirm the cause before replacing the pump.

Related Fault and Error Codes

5C / 5E: On applicable Samsung dryer models, these codes indicate a drainage problem. Possible causes include a full water tank, a restricted or frozen drain hose, or a drain pump malfunction.

A drainage code alone does not confirm that the pump needs replacing. Empty the water tank and check accessible drainage hoses first. Error codes vary by model; refer to the appliance manual.

Installation Guidance

Installation should be carried out by a qualified appliance technician.

  1. Disconnect the dryer from the electricity supply before removing any panels.

  2. Empty the water tank and prepare for residual water in the pump and hoses.

  3. Follow the service instructions for the exact dryer model to access the pump.

  4. Compare the replacement pump with the original, including its electrical rating, mounting points, hose connections and connector.

  5. Inspect the sump, hoses and float mechanism for debris or restrictions.

  6. Replace the pump, securing all hoses, clamps and electrical connections correctly.

  7. Refit all panels before reconnecting the power.

  8. Run the appropriate test cycle and check drainage operation and leaks.

Access arrangements vary between models. Do not modify the wiring, mounting points or hose connections to make an unsuitable pump fit.

Compatibility – Check Before Ordering

Match the complete model code on your dryer’s identification label, including any regional suffix. Similar model names do not guarantee the same pump.

The model references below are supplied compatibility references. Exact duplicates have been removed; different code formats have been retained. Confirm the part against your appliance’s parts diagram before purchase.

Compatible with the following models:

DV10B9750CV/SA DV10R8540GV/SA DV10T9720SV/SA DV11H4100CW/CX DV16R8540CV/SC

DV70F5E0HGWEE DV70F5E0HGWEF DV70F5E0HGWEG DV70F5E0HGWEN DV70F5E0HGWEU DV70F5E0HGWWS DV70F5E2HGWEN DV70F5E2HGWET DV70H4300CWEE DV70H4300CWEF DV70H4300CWEN DV70H4400CW/KJ DV70H4400CW/SA DV70H4400CWEF DV70M50201WEP DV70M50201WET DV70M50203WLE DV70M50203WZE DV70M5020IWEN DV70M5020IWLE DV70M5020KWEE DV70M5020KWEF DV70M5020KWEG DV70M5020KWEN DV70M5020KWWS DV70M5020QWEN DV70M5020QWLE DV70M5220IWET

DV71F5E0HGWEN DV71M5020KWEG DV71M5023KWEN DV7AM50203WEG DV7BM50203WEN DV7CM50201WEN DV7FM5020KWEG DV7XM50431W/EG DV7XM50431WEG

DV80F5E4HGWEE DV80F5E4HGWEN DV80F5E4HGWWS DV80F5E5HGW/SA DV80F5E5HGWEC DV80F5E5HGWEE DV80F5E5HGWEF DV80F5E5HGWEG DV80F5E5HGWEN DV80F5E5HGWEO DV80F5E5HGWET DV80F5E5HGWEU DV80F5E5HGWWS DV80F5EBHGWEE DV80F5EBHGWEG DV80F5EBHGWEN DV80F5EBHGWWS

DV80H4000CS/FA DV80H4000CS/FH DV80H4000CS/GU DV80H4000CS/NQ DV80H4000CS/SG DV80H4100CW/EF DV80H4100CW/FH DV80H4100CW/KJ DV80H4100CW/SA DV80H4100CWAH DV80H4100CWEF DV80H4100CWEN DV80H4200CW/SP DV80H4200CWEF DV80H8100HW/EE DV80H8100HWEE DV80H8100HWEG DV80H8100HWEN DV80H8100HWEU

DV80K6010CWEF DV80K6010CWEG DV80K6010CWEN DV80K6010CWEU DV80K6010CWLE DV80K6010EWEE DV80K6010EWET

DV80M50101WEE DV80M50101WEF DV80M50101WEG DV80M50101WEP DV80M50101WET DV80M50101WEU DV80M50101WWS DV80M50102WEE DV80M50103WWS DV80M50103XEF DV80M5010IW DV80M5010IW/SA DV80M5010IWEC DV80M5010IWEN DV80M5010IWWS DV80M5010KWEE DV80M5010KWEF DV80M5010KWEN DV80M5010QW/SA DV80M5010QWEC DV80M5010QWEN DV80M5010QWLE DV80M5010QXEU DV80M50131WEF DV80M50133WEU DV80M50133XEU DV80M5013KWEN DV80M5013QWEU DV80M5013QXEU DV80M52101WEF DV80M52102WEE DV80M52103WEF DV80M52103XEF DV80M5210IWEG DV80M5210IWEN DV80M5210IWET DV80M5210QWEN DV80M6210CW/EO DV80M6210CWEC DV80M6210CWEF DV80M6210CWEO DV80M6210CWET DV80M6210CWWS DV80M6210EWEN

DV80N62532WEE DV80N62532WET DV80T5420AW/SA DV80TA420DE/SA

DV81F5E5HGWEN DV81F5E5HGWET DV81H4100CWEN DV81K6010CWEN DV81M50103WEG DV81M5210QWEG DV81M6210CWEG DV81M6210CWEN DV81M6210CXEG DV81M6213KWEN DV81N62532WEG DV81N62532WEN DV82M5210KWEG

DV90BB9440GB DV90BB9440GH DV90F5E6HGWEE DV90F5E6HGWEG DV90F5E6HGWEN DV90F5E6HGWET DV90F5E6HGWWS DV90H8000HW/EE DV90H8000HW/SA DV90H8000HWEE DV90H8000HWEG DV90H8000HWEN DV90H8000HWEO DV90H8000HWET DV90H8000HWEU

DV90K6000CWEC DV90K6000CWEE DV90K6000CWEF DV90K6000CWEN DV90K6000CWET DV90K6000CWEU DV90K6000CWLE DV90K6000CXEU

DV90M50003WEE DV90M50003XEU DV90M5000IWEN DV90M5000IWEU DV90M5000QWEN DV90M5003QXEU DV90M52001WEF DV90M52003WEO DV90M5200QWEO DV90M6200CWEC DV90M6200CWEF DV90M6200CWEN DV90M6200CWEO DV90M6200CWET DV90M6200CWLE DV90M6200CWLV DV90M6200CWZE DV90M6200EWEE DV90M8204AWEE DV90M8204AWET DV90M8204AWLV

DV90N62631WEE DV90N62631WET DV90N62632WEF DV90N62632WZE DV90N63636W/SC DV90N63636X/SC DV90N63646G/SC DV90N8287AWEE DV90N8289AW/SA DV90N8289AWEE DV90N8289AWEG DV90N8388AX/SC DV90N8389AW/SC DV90T7440BT/SA DV90T8440SB/SA DV90T8440SH/SA

DV91F5E6HGWEN DV91H8000HWEN DV91M52001WEN DV91M6200CWEN DV91M8204AWEG DV9AM6200CWEG DV9BN8288AWEN DV9EK6000CWEE

Electrical Parts Notice

Electrical and electronic parts are non-returnable for change of mind, incorrect selection or unsuccessful trial-and-error fault finding. Please confirm compatibility and diagnosis before purchasing. This does not affect your rights under applicable consumer law.
