Skope fridge Door TME650-H Skope 1000 Torison Bar Set Hinge Spring

$57.00 NZD
+ GST
SKU: HA37850
Inventory / Availability Status:
Available with Supplier (ETA 2 - 7 days to deliver)
Part Categories: Fridge & Freezer Parts

Delivery / Pick Up and Returns

Pick Up:

All orders are available for pick up. Pick up orders can be collected warehouse at Unit 5, 3 William Pickering Drive, Albany, Auckland at no extra charge.

You will receive a second email when your order is ready for pick up, this is usually within 24 hours for in stock items, or as soon as your item arrives for backorder items (often 3 - 7 days).

Nationwide New Zealand Shipping:

Shipping is available nationwide and internationally. We ship with NZ Post and New Zealand Couriers and our average delivery time for orders in stock is 1 - 5 days, and 2 - 10 days for orders that are available with supplier.

Special Order products, such as those on backorder, have varying ETAs. Please contact us if you want to check before ordering. Some parts (that come from Europe, America, or other overseas locations) can take a little while.

International Orders:

We offer shipping to international locations but not all countries and products are supported. Generally, if you are an international customer and you can select your country and address at checkout, it means we can ship that product to you. Please get in touch with us if you want further information.

If you want to be 100% certain about an ETA for a product, just send us a quick email or call and we'll get back to you ASAP with our best estimate. Thanks!

Returns:

If your order has not been picked up or shipped yet, you can cancel your order for a FULL REFUND.

If you have already received a part and it is incorrect or you no longer need it, you must let us know within 14 days of receiving your part.

NOTE FOR ALL RETURNS: You must notify us before sending a part back and get approval for returns. Parts that are sent back without notifying us in advance may not be approved for refund or return and you will be responsible for return shipping to get this part back to you.

We do not accept returns on electrical products, but on all other parts can offer exchange / refund. The parts must not be used, damaged, or opened (on parts in packaging) and may be subject to restocking fees of up to 20% (depending on the part).

If you have received a faulty or damaged product, we will always offer a replacement or refund depending on availability at not cost to you.

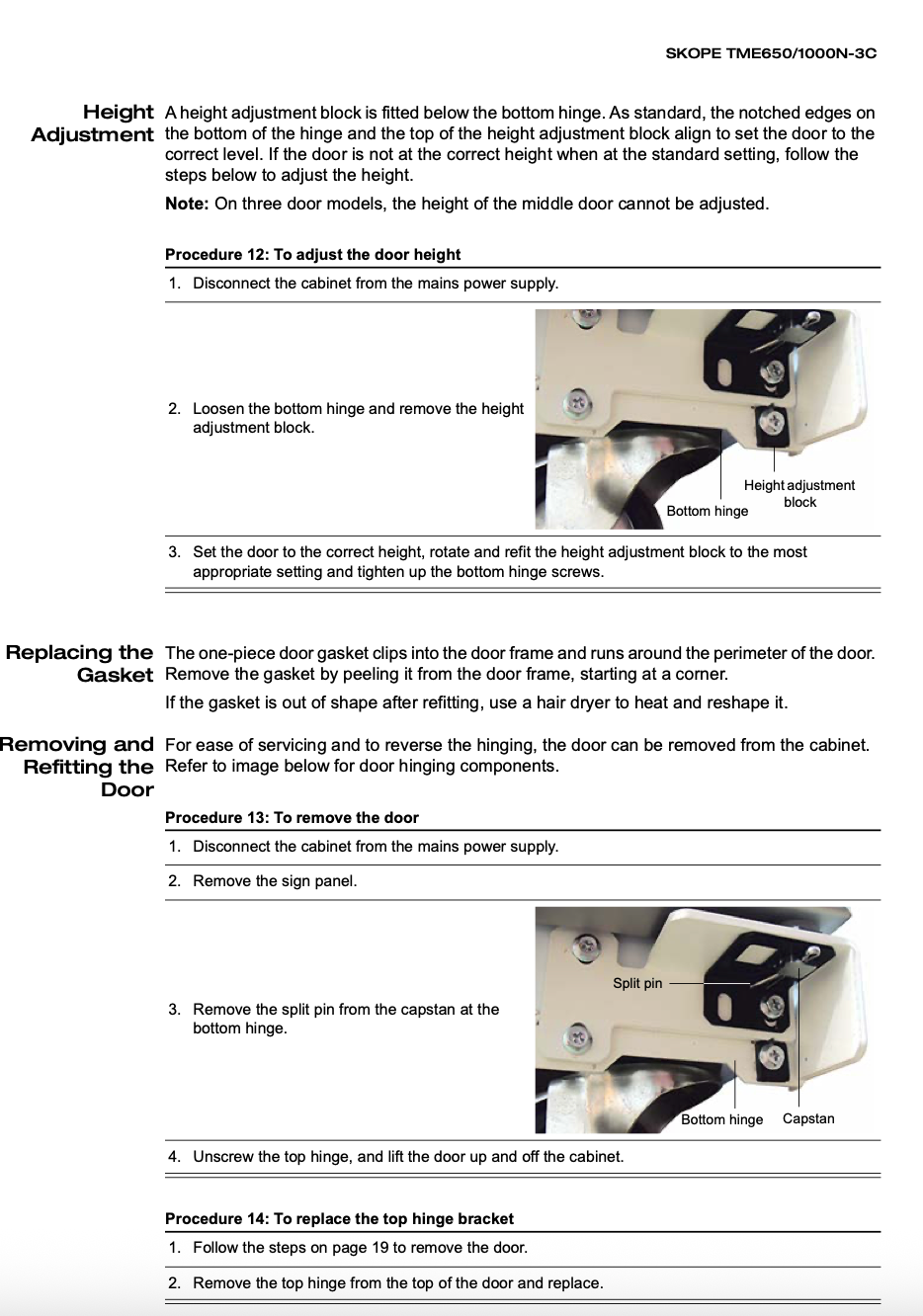

Removing the Door

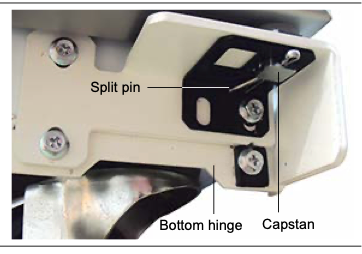

(Photos: Top hinge screw removal; split pin removal at bottom hinge)

You may need to remove the door for cleaning, servicing or reversing the hinge.

Steps to remove the door

  1. Unplug the fridge from power.

  2. Remove the sign panel if your model has one.

  3. Pull out the split pin from the capstan at the bottom hinge.

  4. Remove the top hinge screws and lift the door off.

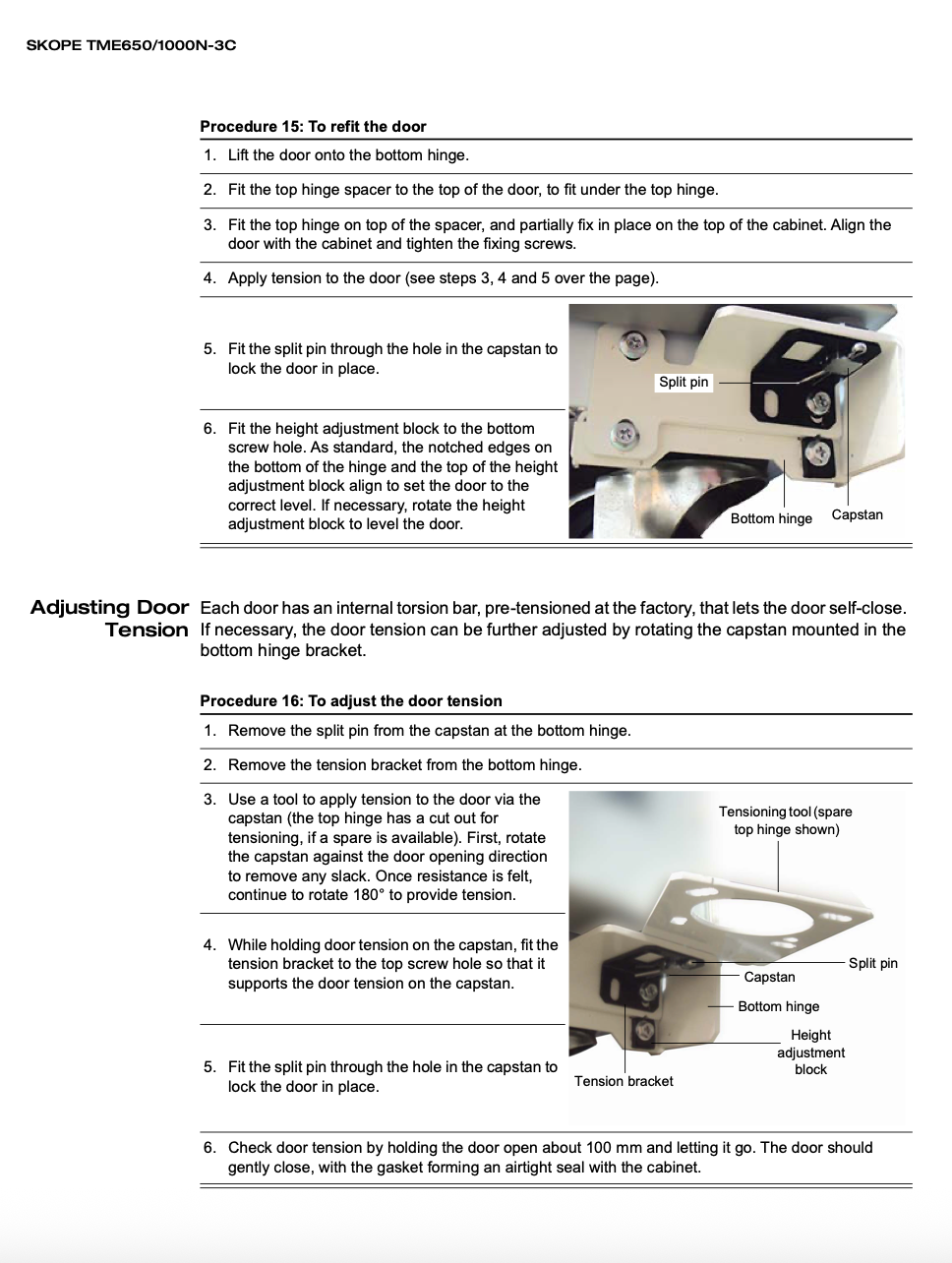

Refitting the Door
(Photos: Door placed on bottom hinge; top hinge being aligned)

  1. Place the door back onto the bottom hinge.

  2. Fit the small spacer on top of the door.

  3. Install the top hinge loosely, align the door, then tighten the screws.

  4. Set the correct tension (see next section).

  5. Insert the split pin back into the capstan.

  6. Refit the height adjustment block and rotate it if the door needs leveling.

Adjusting Door Tension
(Photos: Capstan at bottom hinge; using tool to rotate capstan)

Your fridge door has a built-in torsion bar that helps the door close smoothly on its own. If the door feels too loose or doesn’t close properly, the tension may need adjusting.

Steps to adjust tension

  1. Remove the split pin from the bottom capstan.

  2. Remove the tension bracket.

  3. Using a strong tool, rotate the capstan against the opening direction until the slack is gone.

  4. Turn it an extra half turn (180 degrees) for proper tension.

  5. While holding it, refit the tension bracket.

  6. Insert the split pin.

  7. Test the door by opening it about 10 cm and letting go. It should close gently and seal tightly.

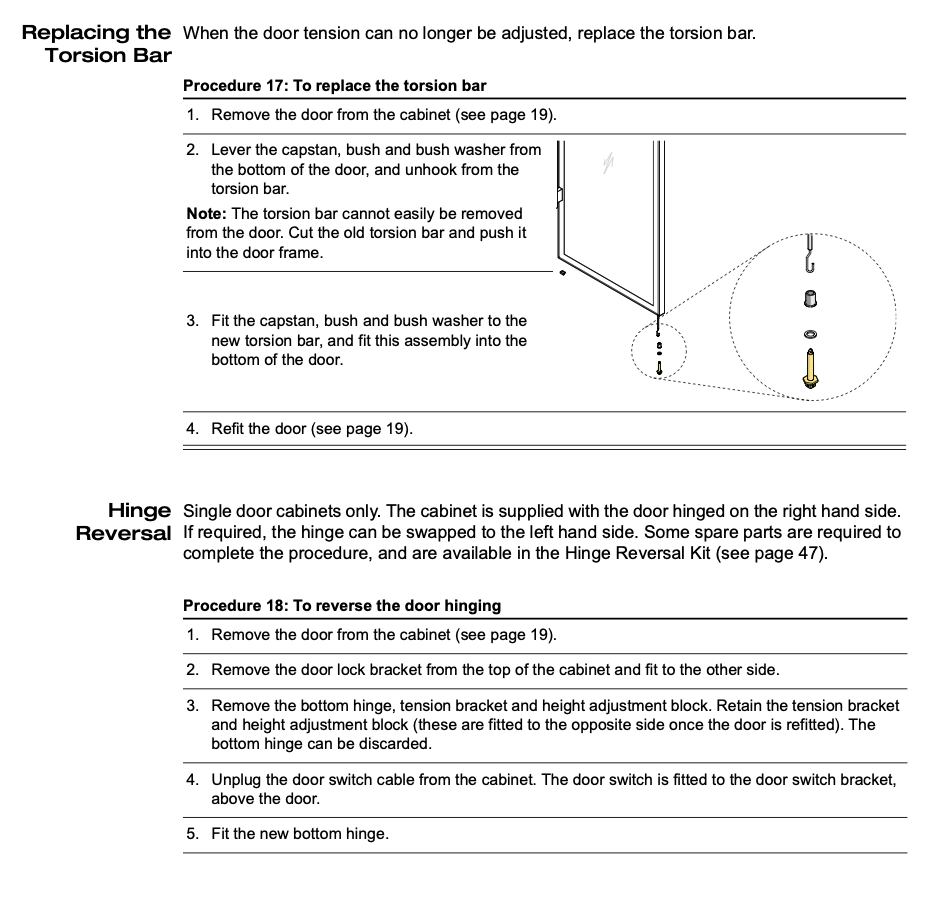

Replacing the Torsion Bar
(Photos: Removing capstan from door; new torsion bar installation)

If the door no longer holds tension even after adjustment, the torsion bar may need replacement.

  1. Remove the door.

  2. Remove the capstan, bush and washer from the bottom of the door.

  3. Cut the old torsion bar and push it inside the door frame.

  4. Fit the new torsion bar with its capstan parts.

  5. Refit the door.

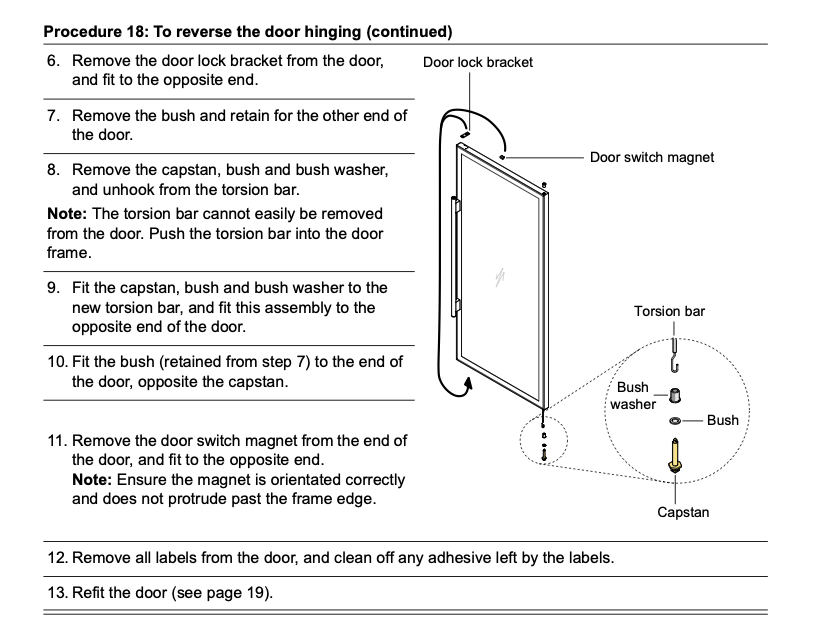

Reversing the Door Hinge
(Photos: Door removed; hinge moved to opposite side; magnet relocation)

This applies to single-door models only. You can move the hinge to the other side if you prefer the door to open in the opposite direction.

Steps to reverse the hinge

  1. Remove the door.

  2. Move the door lock bracket on top of the cabinet to the other side.

  3. Remove the bottom hinge, tension bracket and adjustment block. You will reuse the bracket and block.

  4. Unplug the door switch cable.

  5. Fit the new bottom hinge on the opposite side.

  6. Move the door lock bracket on the door to the other end.

  7. Remove the bush and keep it for the opposite side.

  8. Remove the capstan assembly and disconnect it from the torsion bar. Push the torsion bar inside the door.

  9. Fit the new torsion bar and capstan parts to the opposite end.

  10. Fit the bush on the other side of the door.

  11. Move the door magnet to the other end. Make sure it sits flush and faces the right way.

  12. Remove any old labels and clean the door.

  13. Refit the door.
