Smeg and Classique Oven Terminal Block Assy, *91159

$99.00 NZD
+ GST
SKU: 02867R
Inventory / Availability Status:
In stock 1-5 day to deliver

Delivery and Pick Up Information

Pick Up:

All orders are available for pick up. Pick up orders can be collected warehouse at Unit 6, 21 Poland Road, Wairau Valley, Auckland at no extra charge.

You will receive a second email when your order is ready for pick up, this is usually within 24 hours for in stock items, or as soon as your item arrives for backorder items (often 3 - 7 days).

Nationwide New Zealand Shipping:

Shipping is available nationwide and internationally. We ship with NZ Post and New Zealand Couriers and our average delivery time for orders in stock is 1 - 5 days, and 2 - 10 days for orders that are available with supplier.

Special Order products, such as those on backorder, have varying ETAs. Please contact us if you want to check before ordering. Some parts (that come from Europe, America, or other overseas locations) can take a little while.

International Orders:

We offer shipping to international locations but not all countries and products are supported. Generally, if you are an international customer and you can select your country and address at checkout, it means we can ship that product to you. Please get in touch with us if you want further information.

If you want to be 100% certain about an ETA for a product, just send us a quick email or call and we'll get back to you ASAP with our best estimate. Thanks!

SA9065XS, SA9066AS, SA9066CER, SA9066XS, SA9066SNG. Also suits Omega model OF901XZ.


CG90B, CG90N, CG90RW, CG90RW1, CG90X, GA91CTX, GA91X, GM90N, GM90RW1, GM90X, LF96105SS, SIL91MFA, SNZ90MFX, SNZ91MFA1, SNZ91MFX1, SSA90MFX, SSA91MFA, SSA91MFA1, SSA91MFP1, SSA91MFP9, SSA91MFX, SSA91MFX1, SUK91MBL5, SUK91MBL7, SUK91MFA5, SUK91MFX5, SUK91MFX7,

C6IPX9-1
CG90IXT9
C9IMX9-1
C91IEA9
FS9010CER-1
CG90CIXT

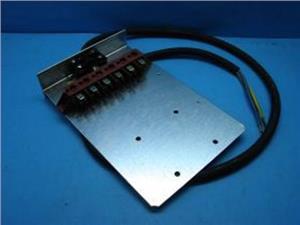

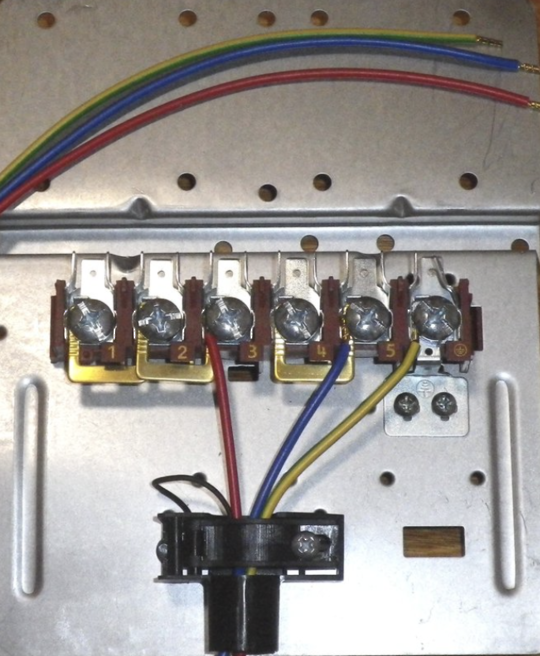

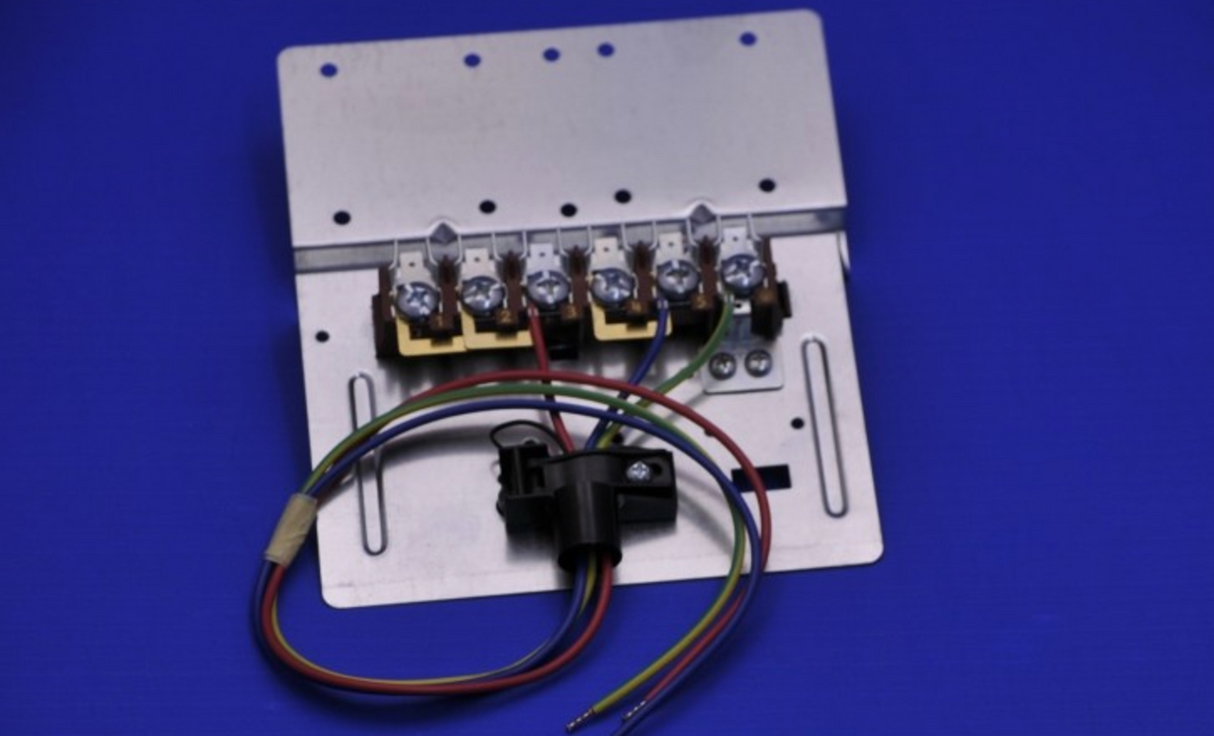

6 way terminal block with screw terminal one side and three 6.4MM spade terminals on each link on the other side. One link also connects to earth.

Includes removable shorting link between some sections.

Terminal block rated at 415VAC 40AMP.

Includes metal mounting bracket and input lead strain relief clamp.

SMEG AND CLASSIQUE OVEN TERMINAL BLOCK ASSY, *91159_description(1)

SMEG AND CLASSIQUE OVEN TERMINAL BLOCK ASSY, *91159_description(2)
SMEG AND CLASSIQUE OVEN TERMINAL BLOCK ASSY, *91159_description(3)

*NOTE: ELECTRONIC AND ELECTRICAL PARTS ARE NOT REFUNDABLE OR EXCHANGEABLE*

We highly recommend that you remove the faulty part and conduct a thorough comparison with the model number, photo, and dimensions provided above. If your model number is not listed, the part you have differs from the photo provided, or you are uncertain, kindly send your inquiry via email toinfo@homeappliancesonline.co.nz. We will respond as soon as possible and give you the right part you need.






691291159, 691290769, 691290695, 691290770, 691291634
