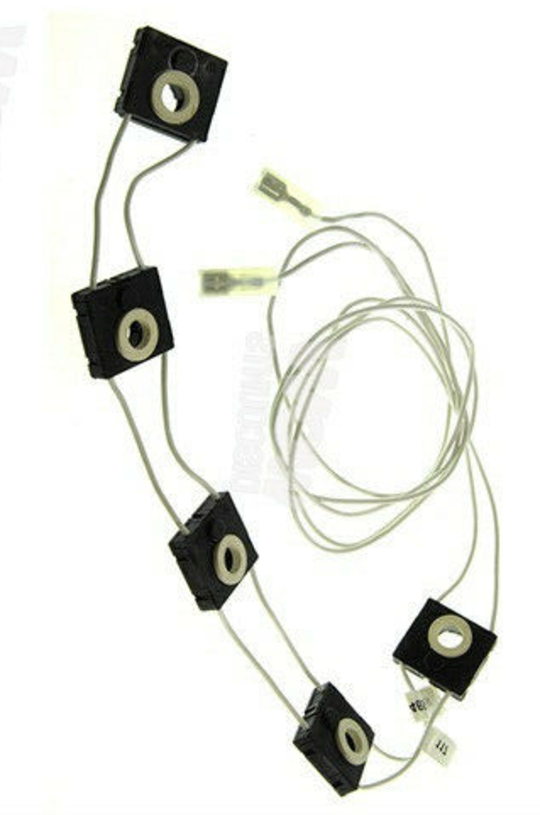

Smeg Cook Top Oven Ignition Switch SUK92MFPS, SA9065XS

$45.00 NZD
+ GST
SKU: 10000
Inventory / Availability Status:
Available with supplier need to order 3-7 days to deliver

Delivery and Pick Up Information

Pick Up:

All orders are available for pick up. Pick up orders can be collected warehouse at Unit 6, 21 Poland Road, Wairau Valley, Auckland at no extra charge.

You will receive a second email when your order is ready for pick up, this is usually within 24 hours for in stock items, or as soon as your item arrives for backorder items (often 3 - 7 days).

Nationwide New Zealand Shipping:

Shipping is available nationwide and internationally. We ship with NZ Post and New Zealand Couriers and our average delivery time for orders in stock is 1 - 5 days, and 2 - 10 days for orders that are available with supplier.

Special Order products, such as those on backorder, have varying ETAs. Please contact us if you want to check before ordering. Some parts (that come from Europe, America, or other overseas locations) can take a little while.

International Orders:

We offer shipping to international locations but not all countries and products are supported. Generally, if you are an international customer and you can select your country and address at checkout, it means we can ship that product to you. Please get in touch with us if you want further information.

If you want to be 100% certain about an ETA for a product, just send us a quick email or call and we'll get back to you ASAP with our best estimate. Thanks!

SA9065XS
SUK92MFP5
SNZ91MFX
SNZ90MFX
SUK91MFA
SUK91MFX
SNZ91MFA
CS15-5
SUK92MFX5
SX81VG,
SUK91MFA SUK91MFA SUK91MFA5 SUK91MFX SUK91MFX SUK91MFX SUK91MFX5 SUK92MBL5 SUK92MFA5 SUK92MFP5 SUK92MFX SUK92MFX5 SX81GB SX81GB SX81VG SX81VG SX81VG SX81VGMA SX81VJM SX81VJME SX81VM SX81VM SX81VM SX81VM-5 SX91ME SX91ME SX91SPVM5 SX91SPVM6 SX91VG SX91VGL SX91VGL SX91VGL SX91VGMA SX91VJ SX91VJ SX91VJ SX91VJB SX91VJB SX91VJIR SX91VJM SX91VJM SX91VJM SX91VJME SX91VLIR SX91VLME SX91VML SX91VML SX91VML SX91VML-5 SX91VMS-5 SX91VMSDK SXL81VM-5 SXL91VM-5 VA91XVG Model SA9065 SA9065 SA9065 SA81VGMA SA81VG SA81VG SA81VG NL91SPVG6 NL91SPVG NL91SPMF6 NL91SPMF5 JGB95XD1S GSE9001 GSE9000 DE91SPMF5 D91SPMF5 CXL91VM CXL81VMT CX91VM-5 CX91VM CX91VJME CX91VGMA1 CX91VGMA CX91VG CX91EVX CX81VMTT5 CX81VMT5 CX81VMT-5 CX81VMT CX81VMT CX81VM CX81VM CX81VGT CX81VGT CX81VG CX81VG CX81VE CX81VE CX81EVX CS15-5 CG90X CB91VGY CB91VG CB91ME CB91ME CB81VGT CB81VE BI91XJ BI91WJ BI91AJ B90MSX5 B90MFX5 AP91VJME AP91CKDX1 202 Model Loading...




Microswitch [FOR UNITS MADE FROM 11-06-2003 TO 02-03-2004] ,

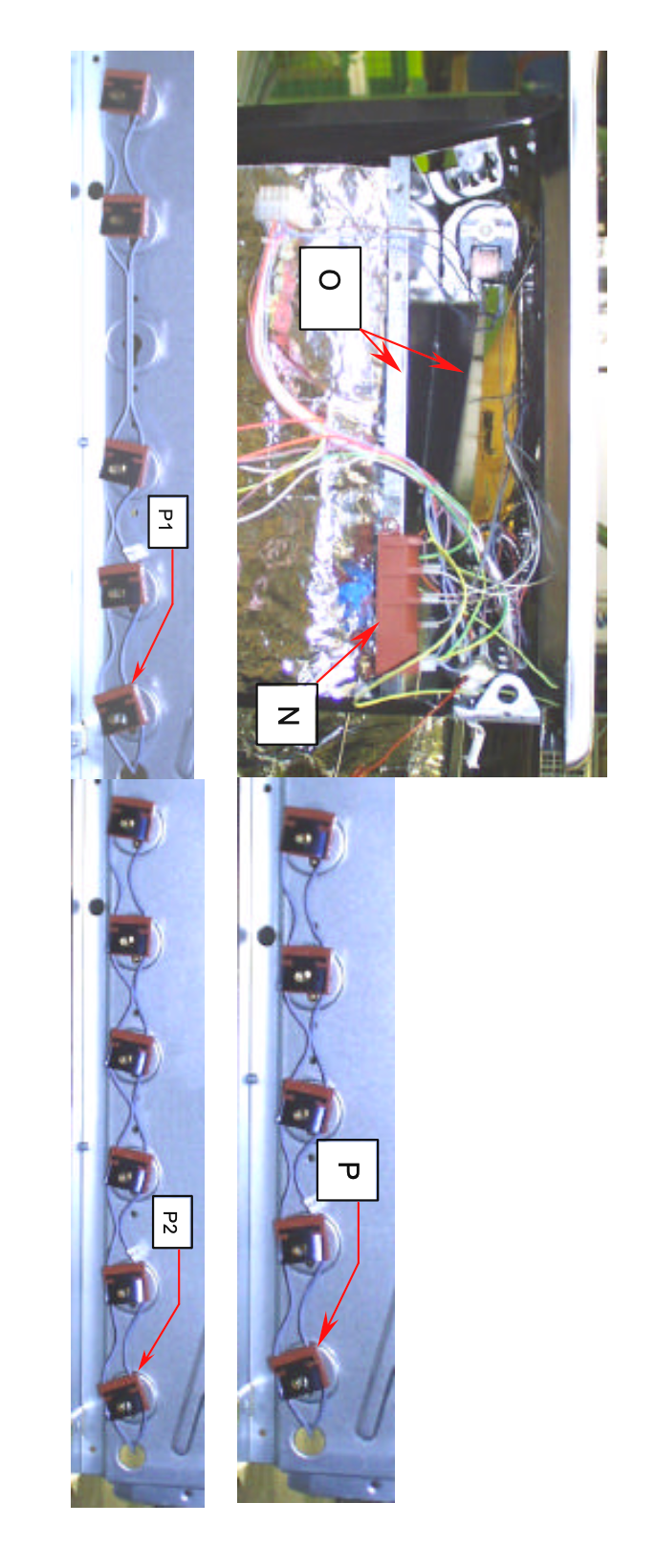

The wirings are now changed(see different codes in the table and the electrical schema at the end);
the igniter (N) has been moved form its old position to the left side of the tangential fan assy (O);
introduction of a new ignition microswitch assy code 694490447 (P) replacing the old code 694490423 fitted on all the 5 flames stainless steel models involved in the modification, with the exception of the model SX91VG where the code 694490449 ( P1 ) replaces the 694490373, while for the 6 flames models the code 6944900448 ( P2 ) replaces the code 694490372

The White-Westinghouse modelsW91SBVG , W91SXVGand the Smeg white aestetich ones, using an ignitionbutton(and not aknoblike the stainless steel models) are not involved in the modification.

Smeg Cook top Oven Ignition Switch Suk92MFPs, Sa9065XS,_description(1)

*NOTE: ELECTRONIC AND ELECTRICAL PARTS ARE NOT REFUNDABLE OR EXCHANGEABLE*

We strongly advise you to remove the faulty part and inspect it. Examine the model number, photo, and information above carefully. If you do not see your model number here, or if the part you have is not similar to the above photo, or if you are unsure, please send us an emailatinfo@homeappliancesonline.co.nzandwe will respond as soon as possible with the correct part.













694490465, 694490447, 694490373, 694490423, 694490447, 694490465,
