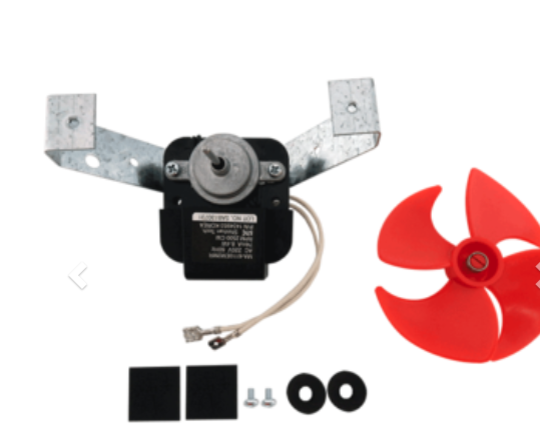

Westinghouse and Simpson Fridge Freezer Fan Motor Kit FN360F, 1441198

SKU: 01686
Inventory / Availability Status:
obsolete - not available anymore
Enquire Now

Delivery and Pick Up Information

Pick Up:

All orders are available for pick up. Pick up orders can be collected warehouse at Unit 6, 21 Poland Road, Wairau Valley, Auckland at no extra charge.

You will receive a second email when your order is ready for pick up, this is usually within 24 hours for in stock items, or as soon as your item arrives for backorder items (often 3 - 7 days).

Nationwide New Zealand Shipping:

Shipping is available nationwide and internationally. We ship with NZ Post and New Zealand Couriers and our average delivery time for orders in stock is 1 - 5 days, and 2 - 10 days for orders that are available with supplier.

Special Order products, such as those on backorder, have varying ETAs. Please contact us if you want to check before ordering. Some parts (that come from Europe, America, or other overseas locations) can take a little while.

International Orders:

We offer shipping to international locations but not all countries and products are supported. Generally, if you are an international customer and you can select your country and address at checkout, it means we can ship that product to you. Please get in touch with us if you want further information.

If you want to be 100% certain about an ETA for a product, just send us a quick email or call and we'll get back to you ASAP with our best estimate. Thanks!

MA-6110EM2MR.
this is new version and replacement

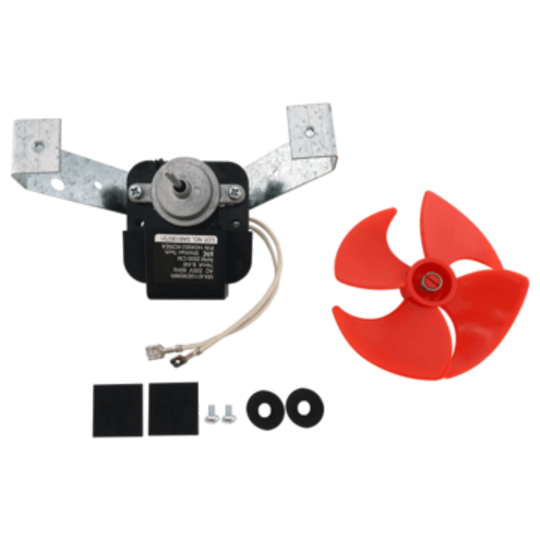

Small fan motor kit including fan blade & mounting bracket suitable for some old frost free refrigerators & freezers. Used in some models including N480FM, N300CR, N300F, FN300F & others.
MA-6110EM2MR superseded to this part
240VOLTS AC, 8.4WATT, 74MA, 50/60HZ, 2500RPM. Supplied CW but direction can be either CW or CCW by undoing the bearing covers and fitting them and the rotor the other way around.

Fitted with 15CM connecting wires with bare male & female 6.4MM spade terminals.

Shaft length 29MM, shaft diameter 3MM, total depth 84MM from tip of shaft to back of mounting knob, thickness of motor from front to back, not including mounting knobs is 40MM.

Fan blade diameter - 100MM.

FN360F FN360FNZ FN360F *07 FN360FNZ *07 FN360F *10 FN360FNZ *10,
WBB3400WA 925053114 WME3600SA 925053117 WBB3700PA 925053115 EBE3700SA 925053103 WBB3700WA 925053116 WBB3400WF 925053158 WBB3400PA 925053113 EBE3400RA 925053133 WBB3700WF 925053160 WBB3700PF 925053161 WBB3700AG 925053176 WBB3700WG 925053175 WBB3400WG 925053173 WBB3400PF 925053159 WBB3400AG 925053174, 1434953, WBB3700PA 925053115 WBB3700WA 925053116 WBB3400WA 925053114 EBE3700SA 925053103 WME3600SA 925053117 WBB3700PF 925053161, N400BD,

Westinghouse:
RS663T*01, RS663T, RS662T*01, RS662T, RS645V, RS645T*01, RS645T, RS643V, RS643T*01, RS643T, RS643S, RS642S, RS633T, RS625S, RS623S, BJ385T, RS643S, RS663T , FN360H
Simpson:
NB380HNZ, N300HNZ, N300H, N300FNZ*11, N300F*11, FN360HNZ, FN360H, FN300HNZ, FN300H
Kelvinator:
NB400HNZ, NB400H, N660G*02, N660G, N640G*02, N640G, N640F, N620F, N300HNZ, N300H, N300FNZ*11, N300F*11, FN360HNZ, FN360H, FN300HNZ, FN300H

*NOTE: ELECTRONIC AND ELECTRICAL PARTS ARE NOT REFUNDABLE OR EXCHANGEABLE*

We highlyrecommend that you remove the faulty part and conduct a thorough comparison with the model number, photo, and dimensions provided above. If your model number is not listed, the part you have differs from the photo provided, or you are uncertain, kindly send your inquiry via email toinfo@homeappliancesonline.co.nz. We will respond promptly and provide you with the appropriate part you need.






1441198, 1425470, 1434953, KA53811, PH688,1425470, 1425297, 0214002051. , 811973306 , SH1717,
