Search description
Type your model number to search our description and see whether it is listed as compatible with this part.
Shop oven hinge 10-14 387077003 for either side of selected stainless steel oven doors or the right side of selected white doors. Check your model and PNC.

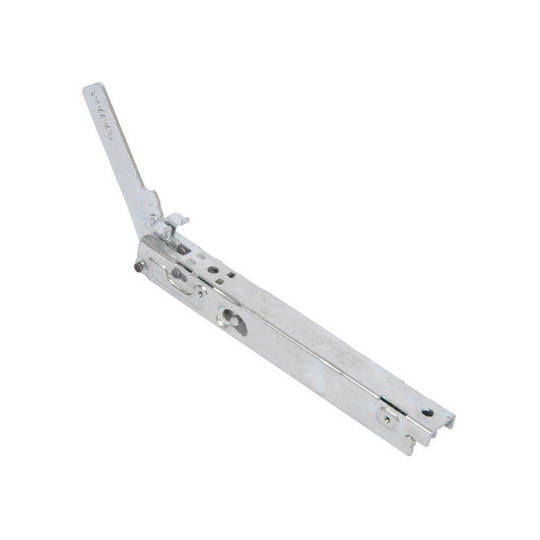

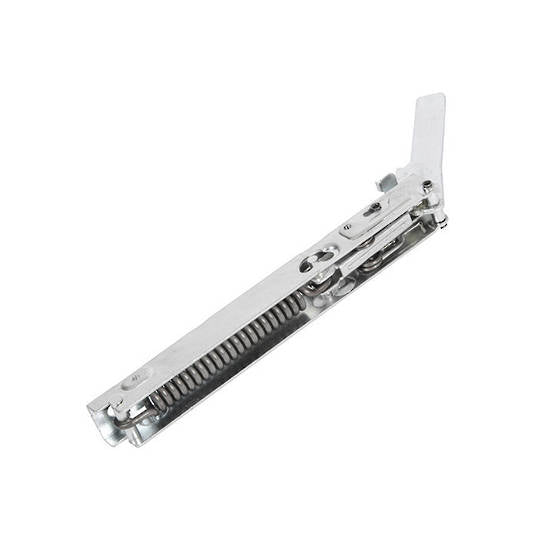

This replacement oven door hinge fits either side of selected stainless steel oven doors. It also fits the right side of selected white oven doors. The spring-loaded mechanism supports the door’s weight and controls its movement. Consider replacing a worn hinge if the door drops when opened, closes unevenly or leaves a gap at the seal.
Technical specifications
| Specification | Detail |
|---|---|
| SKU | 06307 |
| Part number | 387077003 |
| Other references shown on the existing listing | 3870770033, SEP1104, 4055549184 |
| Component | Spring-loaded oven door hinge |
| Stainless steel door fitting | Left or right side on listed models |
| White door fitting | Right-hand side when facing the oven, on listed models |
| Matching left-hand hinge for white doors | 387077001, SKU 08202, where specified for your PNC |
| Model number | PNC / product numbers |
|---|---|
| CVE624SA | 94403174228 |
| EOEE62CK*02 | 944031505 |
| EUEE63CK*02 | 944031502 |
| EVE611SA | 944031644 |
| EVE613SA | 944031645, 94403164509 |
| EVE614SC | 944031727, 94403172723, 94403172728, 94403172732 |
| EVE616SC | 944031730, 94403173019, 94403173028, 94403173032 |
| EVE623SA | 944031647, 94403164709 |
| EVE626SC | 944031734, 94403173428 |
| EVE633SA | 944031648, 94403164809 |
| EVE636SC | 944031736 |
| POR783S | 94403164269, 94403164272 |
| SVE624SA | 9440317470 |
| WVE607S | 940001857, 94000185717, 94000185719 |
| WVE616S | 944031686, 94403168617, 94403168619, 94403168623 |
| WVE616SCC | 944031718 |
| WVE626S | 944031700, 94403170017, 94403170019, 94403170020, 94403170023, 94403170028 |
| WVE636S | 944031702, 94403170217, 94403170219, 94403170223, 94403170228 |
| WVE655S | 944031696, 94403169617, 94403169619 |
| WVE677SCC | 944031719 |
| WVG615SLP | 944031674 |
| WVG615SNG | 944031706 |
White oven models
| Model | PNC / product number |
|---|---|
| 63K914W | 94403149509, 94403149510 |
| 63K914W ML14 | 94403149514 |
| CVE612WA | 9440317380 |
| CVE614WA | 9440317400 |
| CVE662WA | 9440317440 |
| EOC647W-ML14 | 94403148514 |
| POR663WCC | 944031512, 94403151203 |
| POR667WH | 944031714 |
| WVE613W | 944031681 |
| WVE614WA | 944031764 |
| WVE615W | 944031685, 94403168523 |
| WVE615WH | 944031720, 94403172023 |
| WVE616W | 944031687, 94403168723 |
| WVE626W | 944031701, 94403170123, 94403170128 |
| WVE636W | 944031703, 94403170323, 94403170328 |
| WVE665W | 944031699, 94403169923 |
| WVG613WLP | 944031673 |
| WVG613WNG | 944031705 |
| WVG615WLP | 944031675 |
| WVG615WNG | 944031707 |
| WVG655WLP | 944031677 |
| WVG655WNG | 944031709 |
| WVG665WLP | 944031679 |
| WVG665WNG | 944031711 |
Oven Hinge for Westinghouse Simpson and Electrolux Ovens.
It is recommended to replace both hinges at the same time, For Left side Hinge For White color Door Listed Below this page
We recommend replacing both hinges at the same time so the door has even spring tension. Check your oven’s model and full PNC on the rating label, then match the hinge part number and fitting position in the parts diagram. Some model-specific parts lists, including WVE626W, list both hinge numbers, so check the side as well as the model
387 0770 03
387077003, 3870770033, SEP1104, 4055549184
-
BrandWestinghouse, Simpson, Electrolux
-
ApplianceOven
-
PartHinge
