Westinghouse Simpson Freestanding Oven Door Hinge Mercury, Columbo, Neptune, Saturn, Gemini, 45-1-81

Hinge POP663S, POP663W, POP663S*02, POP663W*02, PGP657S, PGP657W, PXP688S, PXP688W, GSP625SLP, GSP625SNG PXP688S*02, PXP688W*02, GSP625WLP GSP625WNG DSP635S DSP635W PGP657S*02 PGP657W*02 GSP625SLP*60 GSP625SNG*60 GSP625WLP*60, GSP625WNG*60 PSP632S*60 PSP632W*60 PPP776S*02 PPP776W*02 PPP776S PPP776W DSP635S*60 DSP635W*60 GSP625SLP*03, GSP625WNG*03 GSP625SNG*03, GSP625WLP*03 EGC624S*44 EGC624W*44 EGC634S*44 EGC634W*44 EOC624S*49 EOC624W*49 PSP632S 94000174664 PSP632W 94000174764 94000181366 94000181466 94300083764 94300083864 94300083964 94300084064 EOB303X 944031428 63H906S*49 63H906W*49 94000174666 94000174766 94000174669 94000174769, EOC624S, Mercury, Columbo, Neptune, Saturn, Gemini, Polaris, Apollo, Alpha,
PAK806W PAK808W PAK804W PAK804W*40 PAK806W*40 PAK808W*40 4U600W*39 MERCURY 4U600W*39 4U601W*39 COLUMBO 4U601W*39 4U602W*39 NEPTUNE 4U602W*39 4U603W*39 SATURN 4U603W*39 4U603W*40 SATURN 4U603W*40 4U604W*39 GEMINI 4U604W*39 4U604W*40 GEMINI 4U604W*40 4U605W*39 POLARIS 4U605W*39 4U605W*40 POLARIS 4U605W*40 4U606W*39 APOLLO 4U606W*39 4U606W*40 APOLLO 4U606W*40 4U608W*39 ALPHA 4U608W*39 4U608W*40 ALPHA 4U608W*40 4U609W*39 JUPITER 4U609W*39 4U600W*01 MERCURY 4U600W*01 4U601W*01 COLUMBO 4U601W*01 4U602W*01 NEPTUNE 4U602W*01 4U603W*01 SATURN 4U603W*01 4U604W*01 GEMINI 4U604W*01 4U605W*01 POLARIS 4U605W*01 4U606W*01 APOLLO 4U606W*01 4U608W*01 ALPHA 4U608W*01 4U609W*01 JUPITER 4U609W*01 4U613W(SATURN) PAK804W*60 PAK806W*60 PAK808W*60 PAK808W*39 PAK804W*39 PAK806W*39 4U609W*58 JUPITER 4U609W*58 4U608W*58 ALPHA 4U608W*58 4U606W*58 APOLLO 4U606W*58 4U601W*58 COLUMBO 4U601W*58 4U600W*58 MERCURY 4U600W*58 4U601W COLUMBO 4U601W 4U602W NEPTUNE 4U602W 4U603W SATURN 4U603W 4U604W GEMINI 4U604W 4U605W POLARIS 4U605W PAK806W*01 4U600W*32 MERCURY 4U600W*32 PAK804W*32 4U601W*32 COLUMBO 4U601W*32 PAK806W*32 4U602W*32 NEPTUNE 4U602W*32 4U603W*32 SATURN 4U603W*32 PAK808W*32 4U604W*32 GEMINI 4U604W*32 4U605W*32 POLARIS 4U605W*32 4U606W*32 APOLLO 4U606W*32 4U608W*32 ALPHA 4U608W*32 4U609W*32 JUPITER 4U609W*32 4U605W*37 POLARIS 4U605W*37 PAK806W*37 PAK808W*37 4U606W*37 APOLLO 4U606W*37 4U608W*37 ALPHA 4U608W*37 4U609W*37 JUPITER 4U609W*37 PAK804W*46 PAK806W*46 PAK808W*46 4U600W*60 MERCURY 4U600W*60 4U601W*60 COLUMBO 4U601W*60 4U606W*60 APOLLO 4U606W*60 4U609W*60 JUPITER 4U609W*60 4U608W*60 ALPHA 4U608W*60 4U612W*60 NEPTUNE 4U612W*60 4U613W*60 SATURN 4U613W*60 94000173065 94000173165 94000173265 4U606W APOLLO 94000170667 4U612W NEPTUNE 94000174867 4U608W APOLLO 94000170767 4U609W JUPITER 94000170867 94000173267 4U613W SATURN 94000174967 62H622W*39 62H636W*39 62H682W*39 62H682W*40 4U600W*04 MERCURY 4U600W*04 4U601W*04 COLUMBO 4U601W*04 4U602W*04 NEPTUNE 4U602W*04 4U603W*04 SATURN 4U603W*04 4U604W*04 GEMINI 4U604W*04 4U605W*04 POLARIS 4U605W*04 4U606W*04 APOLLO 4U606W*04 4U608W*04 ALPHA 4U608W*04 4U609W*04 JUPITER 4U609W*04 4U600W MERCURY 94000170065 94000170165 94000170665 4U608W ALPHA 94000170765 94000170865 94000174865 94000174965 4U600W*46 MERCURY 4U600W*46 4U604W*46 GEMINI 4U604W*46 4U606W*46 APOLLO 4U606W*46 4U608W*46 ALPHA 4U608W*46 4U609W*46 JUPITER 4U609W*46 4U601W*46 COLUMBO 4U601W*46 4U612W*46 NEPTUNE 4U612W*46 4U613W*46 SATURN 4U613W*46 62H636W*37 62H622W 62H636W 62H682W 62H622W*32 62H636W*32 62H682W*32,

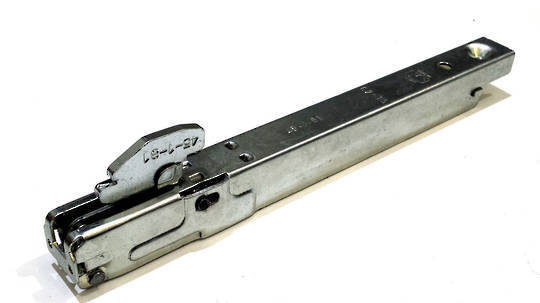

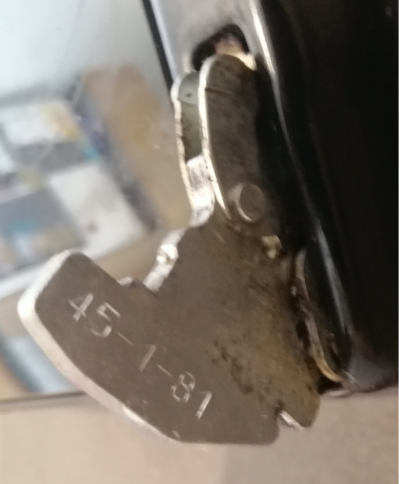

number on the hinge arm 45-1-81, if your ISN'T same do not purchase this hinge

Price for 1 Hinge


Hinge 4U6 Series Mercury, Columbo, Neptune, Saturn, Gemini, Polaris, Apollo, Alpha,Jupiter. Westinghouse Free-standing Cookers
63H906, EGC624, EGC634, EOC614, EOC624,EOC624, EXC614, EXC624, PAK804, PAK806, PAK808, PGN657, PON663, PXN6688, POHN663,
/Westinghouse Wall/Under-bench Ovens

*We recommend you to change both hinge in same time , there is no warranty available if you buy only one hinge , as door is heavy and tension of spring must be same , LEFT and RIGHT hinge are the same .

To BuyADHESIVEClick on this link Below

Industrial Grade Silicon Sealant Hi Temp For Seal

REPLACING BONDED DOOR HINGES.

Separate door hinges are now available for various models. Refer to the relevant Technical

Publication for hinge Part Numbers for any specific model variant or refer to attached list.

PROCEDURE FOR REPLACING ADHESIVE BONDED DOOR HINGES:

PARTS REQUIRED: DOOR HINGE(S), FOR RELEVANT MODEL

(You will also need safety glasses, white spirits, a clean rag, a 15MM chisel and heat gun)

1/ Remove door inner panel and place on a soft surface, such as carpet or towelling.

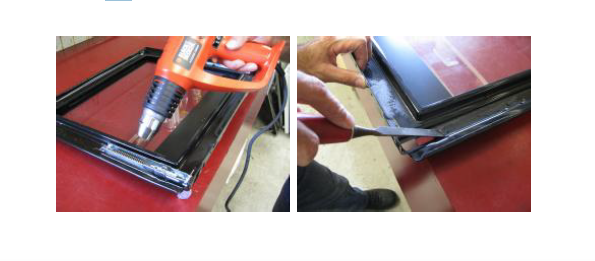

2/ If a hinge is already loose, undo screws & remove. If hinge is still stuck to door,

undo screws, carefully heat with a heat gun until RTV is soft then remove the

hinge.

3/ Heat and scrape off all RTV using a sharp 15 mm chisel & clean surfaces with

white spirits.

4/ Thoroughly dry off all traces of white spirit, using a dry, clean cloth.

5/ Extrude a bead of RTV747 onto the door pan and immediately press hinge into

place. (Note: RTV “skins” very rapidly – this reduces adhesion). Fasten screws.

6/ Place weight on hinge & leave overnight, preferably 24 hours, for RTV to set.

Alternatively, reassemble fit door to oven & ask customer to leave overnight before

use.

We highlyrecommend that you remove the faulty part and conduct a thorough comparison with the model number, photo, and dimensions provided above. If your model number is not listed, the part you have differs from the photo provided, or you are uncertain, kindly send your inquiry via email toinfo@homeappliancesonline.co.nz. We will respond promptly and provide you with the appropriate part.

Please note that selecting the wrong part is possible, but it may incur a 20% restocking fee imposed by the supplier, which will be passed on to you.
