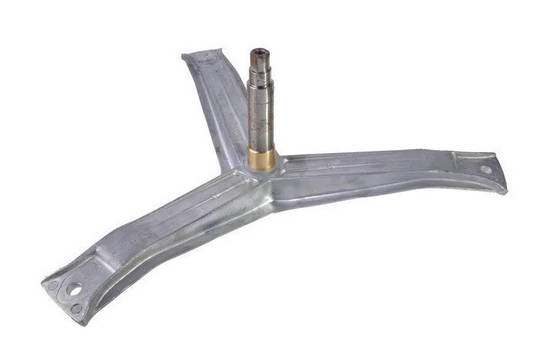

Bosch Siemens Washing Machine Spider Shaft
Inventory / Availability Status:
In stock 1-5 day to deliver
Delivery and Pick Up Information
Delivery and Pick Up Information
Pick Up:
All orders are available for pick up. Pick up orders can be collected warehouse at Unit 6, 21 Poland Road, Wairau Valley, Auckland at no extra charge.
You will receive a second email when your order is ready for pick up, this is usually within 24 hours for in stock items, or as soon as your item arrives for backorder items (often 3 - 7 days).
Nationwide New Zealand Shipping:
Shipping is available nationwide and internationally. We ship with NZ Post and New Zealand Couriers and our average delivery time for orders in stock is 1 - 5 days, and 2 - 10 days for orders that are available with supplier.
Special Order products, such as those on backorder, have varying ETAs. Please contact us if you want to check before ordering. Some parts (that come from Europe, America, or other overseas locations) can take a little while.
International Orders:
We offer shipping to international locations but not all countries and products are supported. Generally, if you are an international customer and you can select your country and address at checkout, it means we can ship that product to you. Please get in touch with us if you want further information.
If you want to be 100% certain about an ETA for a product, just send us a quick email or call and we'll get back to you ASAP with our best estimate. Thanks!

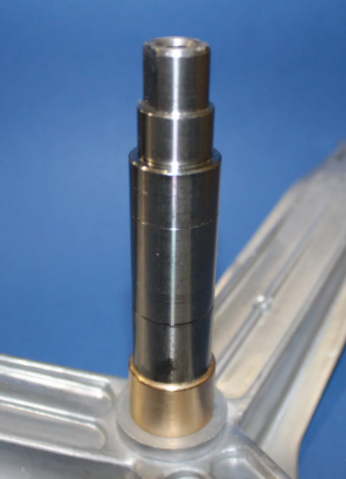

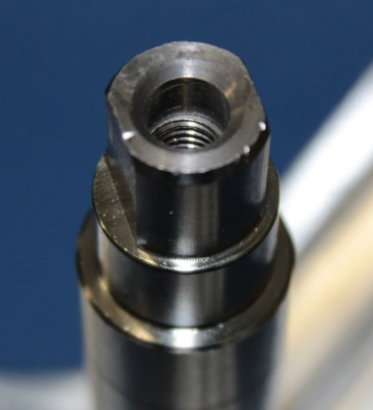

please check measurement below and compare it wit your current Spider
Shaft length: 119 mm.
Diameter of the bore for the tub: 28 mm
Diameter for internal bearings: 25 mm
(internal bearings 6305 are installed in the machine).
Outer bearing diameter: 20 mm (the machine is equipped with an outer bearing 6204).
Height of the bore from the bathtub: 18 mm.
Height from bushing to external bearing: 69 mm.
External bearing height: 13 mm. Seat height: 16 mm. Diameter: 17 mm. Flow: 14 mm. Seam fastening: bolt. Winding ĸ drum: on the back. Distance from the shaft in the place of the seat and the internal bearing to the center of the pedestrian beam: 207 mm.
*NOTE Special order this PARTS ARE NON RETURNABLE FOR REFUND OPR EXCHANGE*
We Strongly recommend you to remove the part which is faulted and check it out and compare carefully with model number and photo and dimension above if you dont see your model number here or the part you have isnt similar to above photo or you are not sure , please send us your request by email toinfo@homeappliancesonline.co.nzwe will reply back to you asap with offering right part.
00215117, 00745020,
-
BrandBosch
-
ApplianceWashing Machine
-
PartOther
