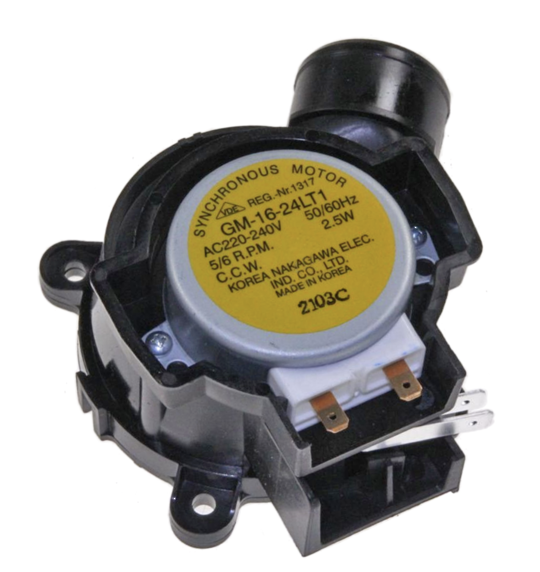

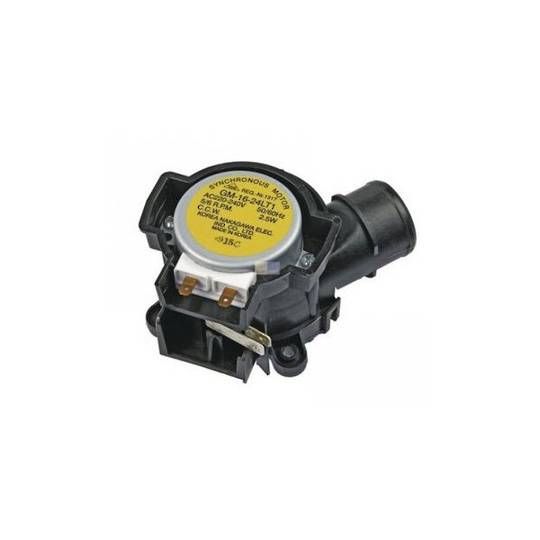

Dishwasher Diverter Valve Or 3 Way Switch GM-16-24LT1

$37.00 USD
+ GST
SKU: 05201
Inventory / Availability Status:
In Stock: 1 - 5 Days to Deliver

Delivery / Pick Up and Returns

Pick Up:

All orders are available for pick up. Pick up orders can be collected warehouse at Unit 5, 3 William Pickering Drive, Albany, Auckland at no extra charge.

You will receive a second email when your order is ready for pick up, this is usually within 24 hours for in stock items, or as soon as your item arrives for backorder items (often 3 - 7 days).

Nationwide New Zealand Shipping:

Shipping is available nationwide and internationally. We ship with NZ Post and New Zealand Couriers and our average delivery time for orders in stock is 1 - 5 days, and  2 - 10 days for orders that are available with supplier.

Special Order products, such as those on backorder, have varying ETAs. Please contact us if you want to check before ordering. Some parts (that come from Europe, America, or other overseas locations) can take a little while.

International Orders:

We offer shipping to international locations but not all countries and products are supported. Generally, if you are an international customer and you can select your country and address at checkout, it means we can ship that product to you. Please get in touch with us if you want further information.

If you want to be 100% certain about an ETA for a product, just send us a quick email or call and we'll get back to you ASAP with our best estimate. Thanks!

Returns:

If your order has not been picked up or shipped yet, you can cancel your order for a full refund.

If you have already received a part and it is incorrect or you no longer need it, you must let us know within 14 days of receiving your part.

NOTE FOR ALL RETURNS: You must notify us before sending a part back and get approval for returns. Parts that are sent back without notifying us in advance may not be approved for refund or return and you will be responsible for return shipping to get this part back to you.

We do not accept returns on electrical products, but may offer exchange / refund on other parts. The parts must not be used, damaged, or opened (on parts in packaging) and will be subject to restocking fees of 20% (depending on the part). This fee applies to all returns.

If you have received a faulty or damaged product, we will always offer a replacement (or refund depending on availability) at no cost to you.

Backorder Items:

As there are 100,000+ different SKUs we are able to source, we are unfortunately not able to stock all the parts that customers may need. Many parts will have to be ordered in from their respective suppliers and have varying lead times depending on the brand and part. For most parts, this is about 2 - 7 working days, however for some international brands or parts which are on backorder, there can be an extended lead time of 2 - 12+ weeks. If you are not happy to wait for your order, please get in touch with us and we can give you an ETA or cancel/refund your order for you right away.

Search description

Type your model number to search our description and see whether it is listed as compatible with this part.

Beko Dishwasher Three Way Diverter Valve And FP 80751-A DW60DOX1

This dishwasher three way diverter valve directs circulating wash water between the spray arm circuits. It is used in selected Beko and related dishwasher models, with cross references supplied for Fisher & Paykel, Defy, Westinghouse, Smeg, Belling and Blanco applications. Replacing a faulty valve can restore water distribution when the internal mechanism, drive motor or position switch has failed.

Key Features

  • Three way wash water diverter valve assembly
  • Controls water distribution to the spray arms
  • Electrically operated rotary mechanism
  • Fits between the circulation pump and sump plumbing
  • Replacement references supplied: 1760400100, 1760400200, 1760400300, 1760400400 and 791983

Part Numbers and Supersession

The Beko references above appear in replacement listings, but the final valve version must be checked against the appliance product code, connectors and hose arrangement. Fisher & Paykel identifies 791983 as “Valve 3 Way With Switch DW60.” Do not describe every reference as an unconditional direct replacement across all brands.

Technical Information

  • Component: wash water diverter / three way valve
  • Application: dishwasher spray arm water distribution
  • Check the supplied motor label for voltage, frequency, wattage and rotation
  • Compare all hose ports, electrical plugs, mounting points and switch connections
  • Overall dimensions have not been verified

Common Signs You May Need a Replacement

  • One basket washes poorly while the other washes normally
  • Water distribution does not change between spray arm circuits
  • Diverter mechanism sticks or repeatedly clicks
  • Water leaks from the valve body or its connections
  • Technician confirms a failed motor, position switch or internal mechanism

Blocked spray arms, dirty filters, a weak circulation pump, wiring faults and control faults can cause similar symptoms. Diagnose the fault before ordering.

Fault and Error Code Information

There is no single error code that applies to this valve across all listed brands. Check the service information for the complete model and product code. Poor washing alone does not confirm that the diverter valve is faulty.

Installation Guidance

Installation should be completed by a qualified appliance technician.

  1. Disconnect the dishwasher from electricity and shut off the water supply.
  2. Drain remaining water and protect the floor before accessing the base.
  3. Follow the model’s service procedure to access the diverter assembly.
  4. Photograph the hose routing and electrical connections before removal.
  5. Compare the old and replacement valves, including port positions, mounting points, motor label and plugs.
  6. Remove the old assembly and inspect the hoses, seals and clamps. Replace damaged components.
  7. Fit the replacement without straining the hoses or wiring. Use the specified seals and any required manufacturer adaptor harness.
  8. Reassemble the dishwasher, restore supplies and run a test cycle. Check for leaks and correct wash water distribution.

Some older valve conversions require an adaptor lead. Confirm the conversion instructions for the appliance rather than modifying connectors or matching wires by colour alone.

Compatibility – check the full model and product code before purchasing. The following list removes repeated entries from the models you supplied. Entries with appended numbers are retained as supplied and should be checked against the appliance label.

Compatible with the following models:

3915MI 3925EIP 3925IL 3925ILS 3929FIL 39310I 3935BI 3938BI 3938EIP 3938IL 3938ILS BBM14S BM6006 BM6006BC BM6006I BSS14 CRDFN16330W D15001E D15001ES D15001EX D19003ES D6764FW92395 D6764FWIX92396 D8001E D8001EI D8001ESB D8835FD D9003ES DDDIN26X21 DDFN26320S DDFN26320W DDN1001 DDN1531B DDN1531X DDN5631X DDN5833X DDN5833XEXTRA DDN5834X DDN5834XXL DDN5838X DDN6831FX DFDN1531X DFDN5630X DFDN5833X DFGN5634B DFGN5820X DFGN5833 DFGN5834 DFGN5834B DFGN5834R DFGN5834X

DFN15320W DFN16220A DFN16220X DFN16320S DFN16320W DFN16330S DFN16330W DFN16330X DFN16420W DFN16420X DFN16X20X DFN26220R DFN26220S DFN26220W DFN26220X DFN26320W DFN26321W DFN26321X DFN26B20X DFN28220S DFN28220W DFN28320S DFN28320W DFN28320X DFN28323X DFN28J20X DFN4520 DFN4520B DFN4520S DFN4530 DFN5530S DFN5630 DFN5630S DFN5631 DFN5631B DFN5631S DFN5830 DFN5830S DFN615 DFN6511 DFN661192130 DFN6611S92132 DFN6631 DFN663192131 DFN663192208 DFN6631S DFN6631S92208 DFN6632 DFN6632S DFN6634 DFN663492428 DFN6634B92417 DFN6634R DFN6634S DFN6634S92425 DFN6634X DFN6635 DFN6635B DFN6635S DFN663B DFN665 DFN6820 DFN6820B DFN6820S DFN6821 DFN6821S DFN6831 DFN683292127 DFN683292139 DFN6832B92155 DFN6832EXTRA92301 DFN6832S92136 DFN6833 DFN6833B DFN6833B92220 DFN6833EXTRA DFN6833S DFN6833S92221 DFN6834 DFN6834B DFN6834EXTRA DFN6834S DFN6835 DFN6835B DFN6835S DFN6836 DFN6837 DFN683792137 DFN683792142 DFN683792149 DFN6837S DFN6837X DFN6838 DFN683892821 DFN6838B DFN6838R DFN6838S DFN6839 DFN6839S DFN6840 DFN6840S DFN6841 DFN6841S DFN6844 DFN6845 DFN6845X DFN6942 DFN6942S DFN71043S DFN71044 DFN71044S DFN71045S DFN71046S6 DFN71046W30 DFN71046X30 DFN71047 DFN71047S DFN71048X DFN71049 DFN71049S

DFS26020W DFS26020X DFS28020S DFS28020W DFS28020X DFS28R20B DFS28R20W DFS29030W DFS29030X DFS39020W DFS39020X DFS6631 DFS6831 DFS6831X DH1255X DI1254 DI1254AP

DIN1531 DIN1531XN DIN1532 DIN15320 DIN1536EXTRA DIN16210 DIN16330 DIN26210 DIN26220 DIN26221 DIN26222 DIN26320 DIN26X20 DIN28220 DIN28221 DIN28320 DIN28330 DIN283304Y DIN28331 DIN28R20 DIN4531 DIN4630 DIN4631 DIN46S DIN46S1 DIN5530 DIN5532 DIN5631 DIN5631XN DIN5632 DIN5633 DIN5829 DIN5830 DIN5833 DIN5833EXTRA DIN5833XL DIN5833XLN DIN5834 DIN5834X DIN5834XL DIN5834XLN DIN5835 DIN5837 DIN5838 DIN5839 DIN5839XL DIN5840 DIN5841 DIN58S DIN5930 DIN5930FX DIN5931FX6 DIN5932FX30 DIN5933FX DIN6830 DIN6830FX30 DIN6831FX DIN6831FX30 DIN6831FX4J DIN6834FX30 DIP28N330

DIS1523 DIS26020 DIS28020 DIS28021 DIS28022 DIS28Q20 DIS29020 DIS39020 DIS5530 DIS5531 DIS5830 DIS5831 DIS5930 DIS5935FX DIT16220 DIT16221 DIT28330 DM3035FI DM3038FI DS1265AP

DSFN5610 DSFN5610S DSFN5620 DSFN5620S DSFN5630 DSFN5630S DSFN580S DSFN5820 DSFN5820S DSFN5821 DSFN5821S DSFN5830S DSFN5830X DSFN5835 DSFN5835S DSFN5840 DSFN6630 DSFN6631 DSFN6631R DSFN6631S DSFN6632 DSFN6632S DSFN6632X DSFN6830 DSFN6830B DSFN6830EXTRA DSFN6830S DSFN6830W DSFN6830X DSFN6831 DSFN6831EXTRA DSFN6831W DSFN6831X DSFN6831XEXTRA DSFN6832 DSFN6832W DSFN6832X DSFN6833 DSFN6833X DSFN6835 DSFN6835S DSFN6835W DSFN6835X DSFN6837W DSFN6837X DSFN6839W DSFN6845 DSFN6845X DSFN850S

DSFS6635 DSFS6635S DSFS6830 DSFS6830S DSFS6830X DSFS6831 DSFS6831S DSFS6831W DSFS6831X DSFS6835 DSFS6835X

DSN15220X DSN15320X DSN16220X DSN16330X DSN26220X DSN26320B DSN26320W DSN26320X DSN28320X DSN28330X DSN28330X4Y DSN4530 DSN4530B DSN4530X DSN4531FX DSN4531XN DSN4532FX DSN4533FX DSN4535B DSN4535FX DSN6533X95891 DSN6533X95944 DSN6534FX95853 DSN6534X DSN6634 DSN6634FX DSN6634FX1 DSN6634FXN DSN6634W1 DSN6635X DSN6820X DSN6831FX7 DSN6832FX30 DSN6832FX304J DSN6833FX DSN6833X DSN6833X95888 DSN6834 DSN6834B DSN6834BEXTRA95885 DSN6834EXTRA DSN6834FX30 DSN6834X DSN6834XEXTRA95878 DSN6835 DSN6835B DSN6835BEXTRA DSN6835EXTRA DSN6835FX DSN6835X DSN6836 DSN6836B DSN6836X DSN6837B DSN6837X DSN6838X95874 DSN6839FX95889 DSN6839FXEXTRA DSN6840 DSN6840B DSN6840FX DSN6840FXEXTRA DSN6841 DSN6841B DSN6841FX DSN6845FX DSN6847FX DSN6847FX30 DSN71045FX DSN71045FX96061 DSN71047FX

DSOS6830 DSS28020X DSS6631X DSS6831X DSS6832X DSS6833X DUN16330X DUN26220W DUN28320W DUN28320X DUN6634FX DUN6634FX1 DUN6832FX30 DUN6832FX304J DUN683992687 DUN6839XL DUS28020W DUS28020X DUS6833X DW663 DW686 DW77235 DW80323W DW92813 DW96152 DW96236 DWD8667S1 DWD8667W FDIN86320 GVN9483E30 IDW804 IDWA804 KDIN28320 KDIS28020 KDSN26320B KDSN26320W KDSN26320X LAP65S1 LAP65W1 LVI62F LVP62X OIC21000B OM62-25T PDIS26020 SDFN6839 SDFN6839S SDFN71047 SDFN71047S TDFN15210S TDFN15210W TDFN16320A TDFN16320S TDFN16320W TDFN16520S TDFN16520W WDI6044 WITTWDI6044 DWF5X DWF6X DWS5X DDW167 DDW172

Ordering Information

Please compare the removed part with the replacement photographs, electrical rating, connections and dimensions before purchasing. If uncertain, email your complete model label and clear photographs of the original valve to info@homeappliancesonline.co.nz.

Electrical parts cannot be returned for change of mind or incorrect selection. This does not affect your rights for faulty or incorrectly supplied goods.

Dishwasher three way diverter valve references 1760400400, 1760400300, 1760400200, 1760400100 and 791983. Check model, product code and connections.
