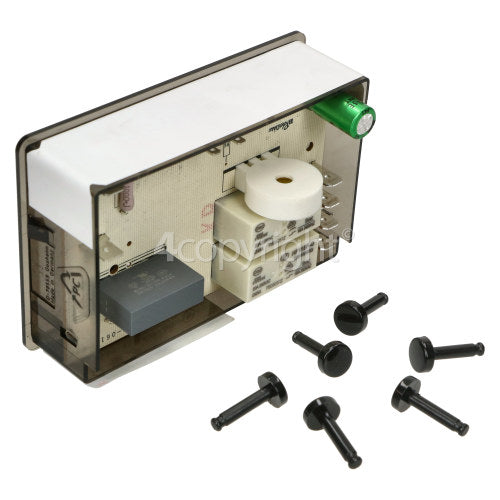

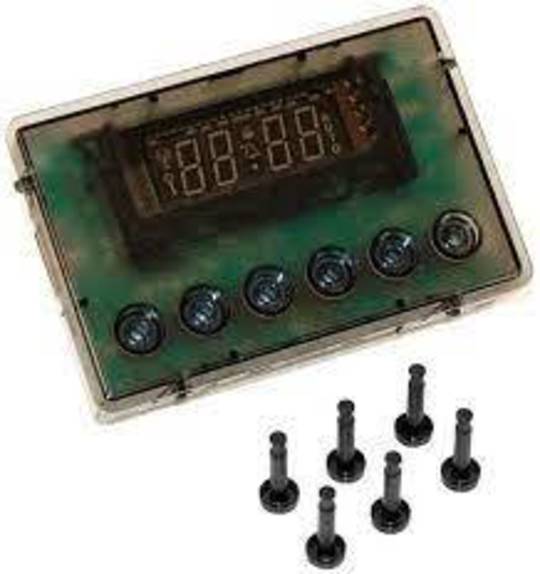

Range Master Clock Timer Classic 110 Dual Fuel Fsd, 2 Relay

This electronic oven timer unit will only fit the Rangemaster models and Model number below as shown or as specifically advised and will not fit any others even if it looks the same, it probably WON'T be as there are several that look alike yet are not, please take time to ensure this is correct before ordering. If you are unsure please DON'T hesitate to contact us and ask for assistance.
Please note that this timer has been changed from the original and will probably be slightly different but is the direct current replacement as it replaces a number of oven timer units.
Ordered upon request only, this is not a returnable spare part.
LED 198/005.1B9
invensys D-78559

Rangemaster Range Cooker
RANGEMASTER 110, GOURMET 110

BISTRO 110 NG GREEN (5657), CLASSIC 110 AUTO NG BLUE (5810), CLASSIC 90 ELECTRIC BLACK (5718), ZENITH 110 NG GREY/CHROME (5637), BISTRO 110 NG SILVER (5656), CLASSIC 110 BLANC NG WHITE (5830), CLASSIC 90 ELECTRIC WHITE (5922), ZENITH 110 NG SILVER (5852), CLASSIC 110 AUTO NG BLACK (5665), CLASSIC 90 BLANC NG WHITE (5880), RANGEMASTER GOURMET NG BLACK (5568), 5047 5331, 5337, 5420, 5439, 5455, 5484, 5487, 5493, 5593, 5597, 5611, 5630, 5637, 5656, 5657, 5658, 5661, 5664, 5667, 5670, 5674, 5675, 5679, 5680, 5687, 5716, 5717, 5718, 5764, 5765, 5791, 5792, 5793, 5794, 5795, 5796, 5797, 5798, 5799, 5800, 5801, 5802, 5852, 5880, 5920, 5921, 5922, 5937, 5938, 5943, 5944, 6082, 6084, 6127, 6146, 6147, 6148, 6149, 6150, 6151, 6152, 6153, 6154, 6155, 6156, 6157, 6158, 6159, 6160, 6161, 6162, 6163, 6164, 6165, 6166, 6167, 6168, 6169, 6170, 6171, 6172, 6173, 6174, 6175, 6176, 6177, 6236, 6237, 6288, 6289, 6293, 6330, 6331, 6452, 6454, 6457, 6458, 6461, 6462, 6463, 6464, 6465, 6466, 6467, 6480, 6481, 6482, 6483, 6484, 6485, 6486, 6487, 6490, 6491, 6713, 6714, 6715, 6716, 6717, 6719, 6755, 6758, 6814, 6839, 6894, 7337, 7338, 7339, 7340, 7341, 7342, 7343, 7344, 7345, 7346, 7347, 7348, 7349, 7350, 7351, 7352, 7353, 7354, 7355, 7356, 7357, 7358, 7368, 7369, 7370, 7371, 7372, 7373, 7374, 7375, 7376, 7377, 7378, 7379, 7380, 7381, 7399, 7400, 7401, 7402, 7403, 7404, 7405, 7406, 7407, 7408, 7413, 7423, 7424, 7425, 7426, 7427, 7428, 7429, 7430, 7431, 7432, 7433, 7434, 7435, 7436, 7778, 7779, 7780, 7781, 7807, 7808, 7809, 7810, 7811, 7812, 8038, 8049, 8051, 8501, 8502, 8507, 8508, 8450, 8142

How to set clock timer on Rangemaster ovens

SETTING THE CLOCK

When the cooker is first connected to the mains, or if there’s been a prolonged power interruption, the clock display flashes [0.00] and [AUTO]. Don’t forget that the LCD clock display uses a 24-hour clock.

If you need to reset the cooker, turn off the power supply and wait for a couple of minutes and start again. Once the correct time is displayed, leave the controls for a few seconds, and the time will set automatically.

SETTING A TWO-BUTTON CLOCK

To set the time on a Rangemaster cooker with two buttons, turn and hold the Timer (A) dial to the Clock (C) setting and at the same time turn the Adjusting (B) dial either clockwise or counterclockwise until the desired time is displayed.

SETTING A THREE-BUTTON CLOCK

To set the clock on a Rangemaster cooker with three buttons, press the [+] and [-] buttons simultaneously. The point between hours and minutes will start to flash for five seconds. While the point is flashing press either the [+] or [-] button to set the correct time.



SETTING A SIX-BUTTON CLOCK

To set the clock on a Rangemaster cooker with six buttons, press and hold buttons A and B simultaneously (minute minder and cook time). At the same time press the [+] button or the [–] button until the correct time is showing.



FAQS

HOW DO I RESET MY RANGEMASTER CLOCK AFTER A POWER CUT?

You can reset the clock by following the same steps provided in the 'Setting the clock' section above.

WHY IS THE CLOCK ON MY RANGEMASTER COOKER NOT WORKING?

If the clock isn't working, there could be a power issue. Check your cooker is connected to the power supply and the fuse hasn't tripped. If issues persist, it might be a technical fault,

MY RANGEMASTER COOKER'S CLOCK KEEPS RESETTING. HOW CAN I FIX IT?

Persistent resetting could indicate a power supply issue. It's also possible that there's a technical fault with the cooker. If the problem continues, please contact our customer service team.

WHAT SHOULD I DO IF THE CLOCK ON MY RANGEMASTER COOKER DISPLAYS AN ERROR MESSAGE?

Check your user manual for an explanation of the error code. If you can't find a solution, please get in touch with Rangemaster customer services.

DOES THE CLOCK AUTOMATICALLY CHANGE WHEN THE TIME GOES BACKWARDS OR FORWARDS?

No, you will need to manually adjust the time on your Rangemaster cooker when the clocks change.

*NOTE: ELECTRONIC AND ELECTRICAL PARTS ARE NOT REFUNDABLE OR EXCHANGEABLE*

We highly recommend that you remove the faulty part and conduct a thorough comparison with the model number, photo, and dimensions provided above. If your model number is not listed, the part you have differs from the photo provided, or you are uncertain, kindly send your inquiry via email to info@homeappliancesonline.co.nz. We will respond as soon as possible and give you the right part you need.

A097268 A030545 E50153
