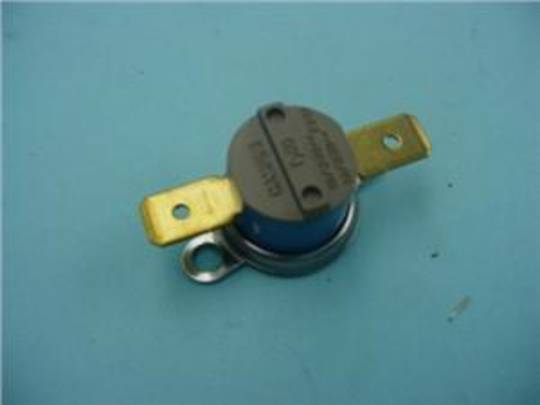

Smeg Ovens Cooling Fan Limiter Cut Out Thermostat 70 Degree

$49.00 NZD
+ GST
SKU: 05746
Inventory / Availability Status:
In Stock 1 - 5 Days to Deliver

Delivery and Pick Up Information

Pick Up:

All orders are available for pick up. Pick up orders can be collected warehouse at Unit 6, 21 Poland Road, Wairau Valley, Auckland at no extra charge.

You will receive a second email when your order is ready for pick up, this is usually within 24 hours for in stock items, or as soon as your item arrives for backorder items (often 3 - 7 days).

Nationwide New Zealand Shipping:

Shipping is available nationwide and internationally. We ship with NZ Post and New Zealand Couriers and our average delivery time for orders in stock is 1 - 5 days, and 2 - 10 days for orders that are available with supplier.

Special Order products, such as those on backorder, have varying ETAs. Please contact us if you want to check before ordering. Some parts (that come from Europe, America, or other overseas locations) can take a little while.

International Orders:

We offer shipping to international locations but not all countries and products are supported. Generally, if you are an international customer and you can select your country and address at checkout, it means we can ship that product to you. Please get in touch with us if you want further information.

If you want to be 100% certain about an ETA for a product, just send us a quick email or call and we'll get back to you ASAP with our best estimate. Thanks!

Cooling fan cut out thermostat limiter ALFA30V, APF8B, APF8PF, H2590X, S10AXMF, S10XMF, S200, S200EB, S20XMF, S20XMFR, S300, S300EB, S300X, S340GX, S340GXK, S810G, S810GEB, SA10XMF/1, SA20XMF, SE10XMF, SE2010MF, SE2010MFB, SE2010MFX, SE20XMFR, SE810MF, SE810MFEB, SIL390EB, SNZ340GSS, SP20XMF, SP617MF, WE340GX, WI200, WI200EB, WI340GX, A1, A11A-6, A11CER-6, A11X-6, A1-6, A1A, A1A-6, A1AD, A1AU6, A1B, A1BL-6, A1C, A1C-6, A1CA, A1CA-6, A1D, A1D-6, A1DA-6, A1DB-6, A1DN-6, A1DNA-6, A1DRW-6, A1G, A1K-6, A1NU6, A1P-6, A1PU6, A1RW-6, A1RWU6, A1SE-6, A1VA, A1VAD, A1VG, A1VGD, A1WH-6, A1XCU6, A1XU6, A2, A21X-6, A2-6, A2A, A2A-6, A2AD, A2BL-6, A2C-6, A2D, A2D-6, A2DA-6, A2RW-6, A2WH-6, A3, A31X-5, A31X-6, A3-5, A3-6, A3A-5, A3AD-5, A3D-5, A3D-6, A3DA-6, A3XU6, A41C-5, A42C-6, A4-5, A4-6, A4BL-6, A5-5, A5-6, A5D-5, A5D-6, ALFA135BV, ALFA135GH, ALFA135VM, ALFA135XV, ALFA200X, ALFA200XM, ALFA201XM, ALFA241XM, ALFA31V, ALFA31V1, ALFA341XM, ALFA41V1, ALFA41V1K, ALFA43GH, AP361MFEB, AP361MFN, AP361MFX, AP378MFX, AP561X-8, AP578X-8, APF8B, APF8PF, APL360XC, APL360XC1, APL5706, B102MFX5, B71MPX5, B72MFX5, BU135XV, C113GMX, C6GGXU, C6GVXBE, C6GVXI, C7GPX, C8GVXI, C91GVXI, C92DX, C92GMNNL, C92GMX, C92GMXNL, C92GPX, C92IPX, C9GGSSA, C9GGXU, C9GMXU, C9GVXBE, C9GVXI, C9GVXNL, CC62MFX5, CC92MFX5, CC92MFX6, CG92N, CG92X, CP60IX, CP60X, CP60X6, CP60X7, CS120, CS120-5, CS120-6, CS120A-5, CS120A-6, CS120BE-5, CS120NL-5, CS120NL-6, CS120NLA5, CS120NLA6, CS122-5, CS122-6, CS150-5, CS150-6, CS150NL-5, CS150NL-6, CS150SA, CS18A, CS18A-6, CS18NLA-6, CS18NLV-6, CS18V, CS18V-6, CS19, CS19-6, CS19A, CS19A-6, CS19B, CS19B-6, CS19N-6, CS19NL, CS19NL-6, CS19NLA, CS19NLA-6, CS19NLB-6, CS19NLN-6, CS19NLRW6, CS19NLVA, CS19P-6, CS19RW-6, CS19V, CS20, CS20-6, CS20FB-6, CS20FBA-6, CS20NL-6, CS20NLA-6, CS71-5, CS71-6, CS71BE-5, CS71NL-5, CS71NL-6, CSA122X-6, CSA150X-6, CSA19, CSA19A, CSA19B, CSA19XLP, CSA20, CX51GVE, CX61GVE, CX81GVET, CX91GVE, DCCB 5269, DO10PSS, DO10PSS-5, DO41SS, DO4BL, DO4BL-5, DO4SS, DO4SS, F166-5, CS6GMXA

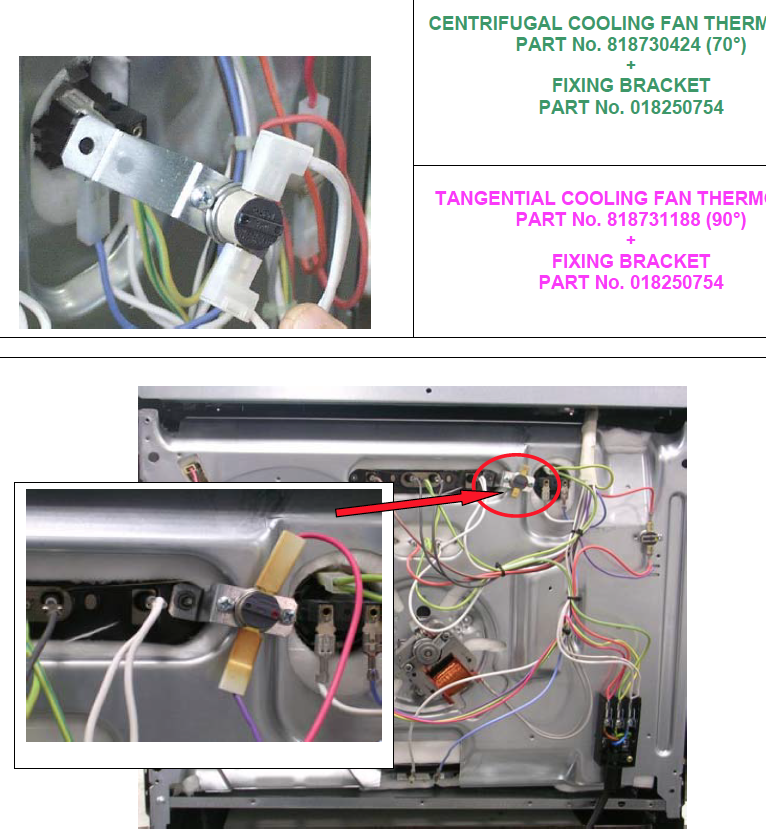

The cooling fan thermostat with a 140°C setting is replaced with a new one :

thermostat 90° setting for appliances equipped with tangential cooling fan,

thermostat 70° setting for appliances equipped with centrifugal cooling fan.

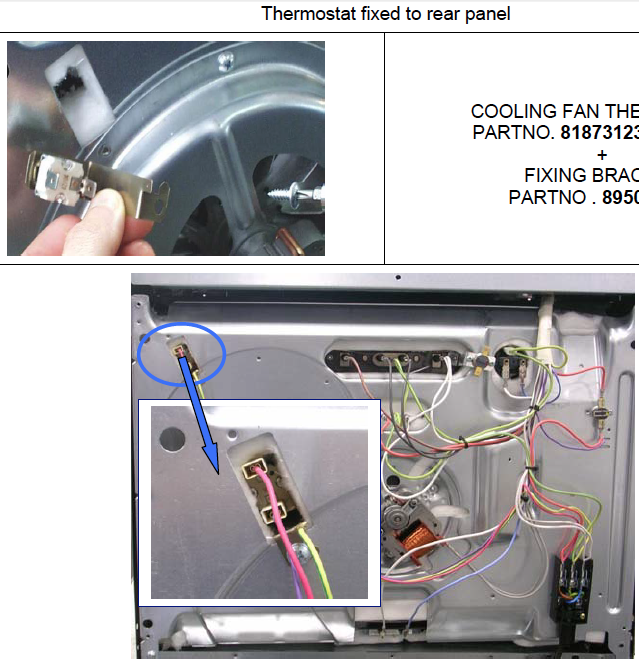

Furthermore the position of the thermostat has changed: in the old

configuration, the thermostat is fixed to the left side of the rear panel (against

oven cavity), whereas in the new configuration the thermostat is fixed on the

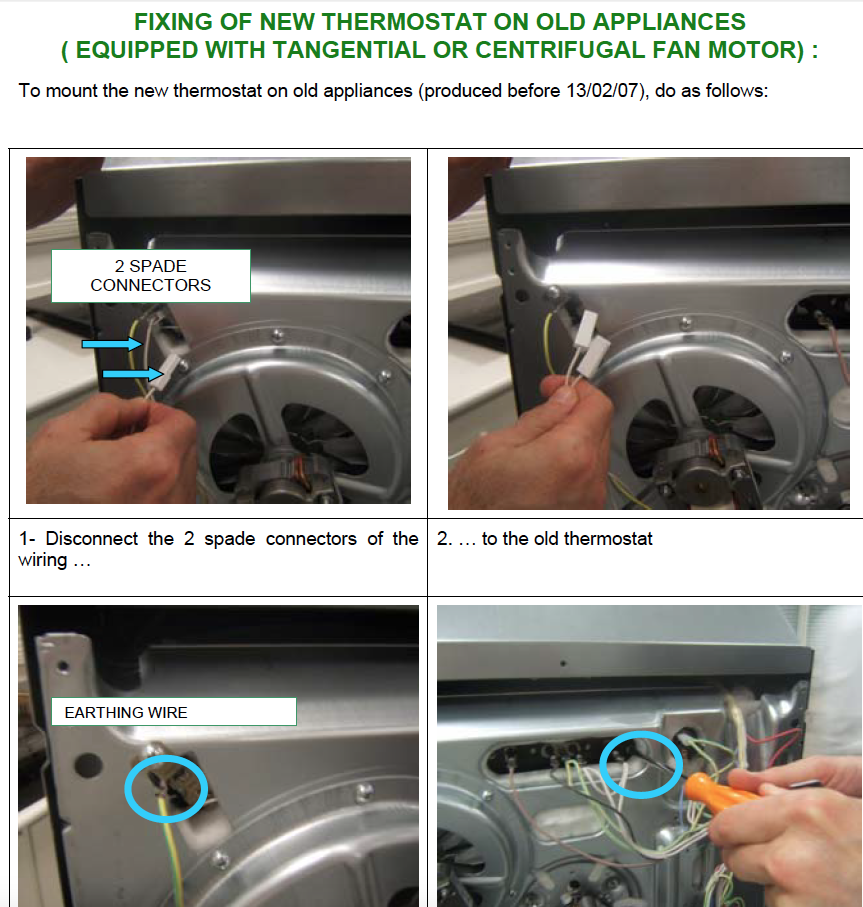

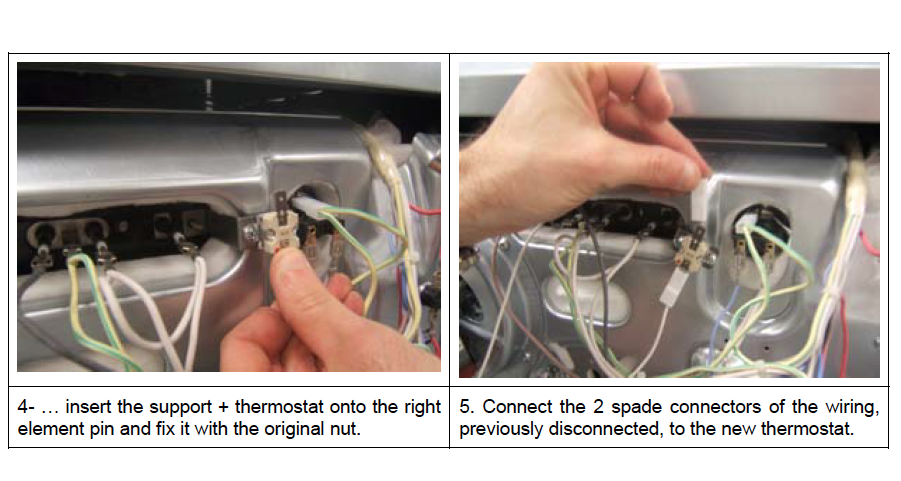

upper heating element (see details in the document

Smeg Ovens cooling fan limiter Cut out Thermostat 70 DEGREE_description(1)
Smeg Ovens cooling fan limiter Cut out Thermostat 70 DEGREE_description(2)
Smeg Ovens cooling fan limiter Cut out Thermostat 70 DEGREE_description(3)
Smeg Ovens cooling fan limiter Cut out Thermostat 70 DEGREE_description(4)

*NOTE: ELECTRONIC AND ELECTRICAL PARTS ARE NOT REFUNDABLE OR EXCHANGEABLE*

We highly recommend that you remove the faulty part and conduct a thorough comparison with the model number, photo, and dimensions provided above. If your model number is not listed, the part you have differs from the photo provided, or you are uncertain, kindly send your inquiry via email toinfo@homeappliancesonline.co.nz. We will respond as soon as possible and give you the right part you need.
