Westinghouse Dishlex Simpson and Electrolux Dishwasher On Off Power Switch , SB907SJ, SB915KJ and More

$33.00 NZD
+ GST
SKU: 05203
Inventory / Availability Status:
Lead time of 2 - 5 + days if stock level not showing

Delivery / Pick Up and Returns

Pick Up:

All orders are available for pick up. Pick up orders can be collected warehouse at Unit 5, 3 William Pickering Drive, Albany, Auckland at no extra charge.

You will receive a second email when your order is ready for pick up, this is usually within 24 hours for in stock items, or as soon as your item arrives for backorder items (often 3 - 7 days).

Nationwide New Zealand Shipping:

Shipping is available nationwide and internationally. We ship with NZ Post and New Zealand Couriers and our average delivery time for orders in stock is 1 - 5 days, and  2 - 10 days for orders that are available with supplier.

Special Order products, such as those on backorder, have varying ETAs. Please contact us if you want to check before ordering. Some parts (that come from Europe, America, or other overseas locations) can take a little while.

International Orders:

We offer shipping to international locations but not all countries and products are supported. Generally, if you are an international customer and you can select your country and address at checkout, it means we can ship that product to you. Please get in touch with us if you want further information.

If you want to be 100% certain about an ETA for a product, just send us a quick email or call and we'll get back to you ASAP with our best estimate. Thanks!

Returns:

If your order has not been picked up or shipped yet, you can cancel your order for a full refund.

If you have already received a part and it is incorrect or you no longer need it, you must let us know within 14 days of receiving your part.

NOTE FOR ALL RETURNS: You must notify us before sending a part back and get approval for returns. Parts that are sent back without notifying us in advance may not be approved for refund or return and you will be responsible for return shipping to get this part back to you.

We do not accept returns on electrical products, but may offer exchange / refund on other parts. The parts must not be used, damaged, or opened (on parts in packaging) and will be subject to restocking fees of 20% (depending on the part). This fee applies to all returns.

If you have received a faulty or damaged product, we will always offer a replacement (or refund depending on availability) at no cost to you.

Backorder Items:

As there are 100,000+ different SKUs we are able to source, we are unfortunately not able to stock all the parts that customers may need. Many parts will have to be ordered in from their respective suppliers and have varying lead times depending on the brand and part. For most parts, this is about 2 - 7 working days, however for some international brands or parts which are on backorder, there can be an extended lead time of 2 - 12+ weeks. If you are not happy to wait for your order, please get in touch with us and we can give you an ETA or cancel/refund your order for you right away.

Search description

Type your model number to search our description and see whether it is listed as compatible with this part.

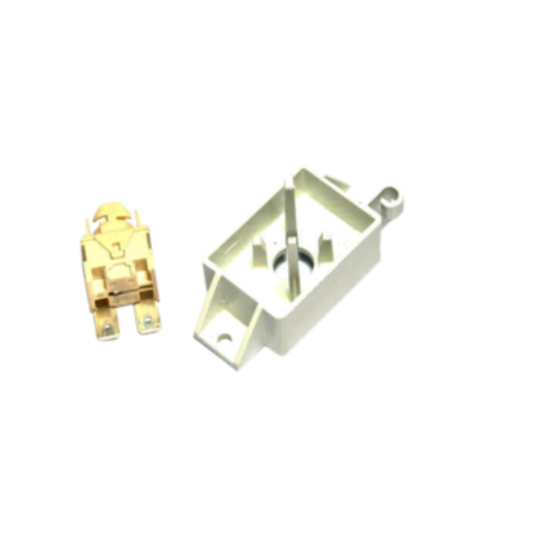

Replace a faulty dishwasher power switch with on/off switch and mounting bracket assembly 0609400031. This push-on, push-off assembly operates the mains power control on selected Dishlex, Electrolux, Simpson and Westinghouse dishwashers.

Key Features

  • Part reference: 0609400031
  • Current replacement reference: 85806094000310
  • Push-on, push-off operation
  • Supplied as a switch and mounting bracket assembly
  • 6.4mm spade terminal connections
  • Replacement plastic bracket may differ from the original metal bracket

Technical Details

Specification Detail
Component Mains on/off switch and bracket
Approximate switch dimensions 19 × 13 × 38mm high
Spade terminal size 6.4mm
Bracket mounting-hole spacing 55mm centre to centre

Measurements refer to the switch body rather than the complete bracket assembly. Match the electrical rating and terminal arrangement to the original switch before installation.

Replacement Part References

0609400031 has been superseded by 85806094000310. Earlier references include 0534400102, 0534400106 and 85805344001060. References 0022400023 and 0030400145 identify earlier mounting plate/bracket components replaced through the complete assembly; they are not separate switch-only equivalents.

Common Signs You May Need a Replacement

  • Power button does not latch or release correctly
  • Dishwasher powers on intermittently when the button is operated
  • Switch housing or mounting bracket is broken
  • Technician confirms that the switch contacts have failed
  • Heat damage is present around the switch or terminals

A dishwasher that will not start may also have a power supply, door latch, wiring or controller fault. Confirm the cause before replacing the switch. Damaged connectors and wiring must also be assessed.

Check the complete model number, including the production suffix after the asterisk. Some DX302 and DX403 variants use a different switch, so the base model alone does not confirm fitment.

Installation Guidance

Disconnect the dishwasher from the electricity supply before accessing the switch. Installation should be carried out by a qualified electrical technician. Check the mounting bracket, terminal condition and wiring positions, then complete the appropriate electrical safety and operational checks after fitting.



52B870SJ*01
52B870SJ*03
52B870SJ*04
52B870SJ*05
52B870SJ*06
52B870SJ*07
52B870SJ*08
52B870WJ*01
52B870WJ*03
52B870WJ*04
52B870WJ*05
52B870WJ*06
52B870WJ*07
52B870WJ*08
52B890SJ*01
52B890SJ*03
52B890SJ*04
52B890SJ*05
52B890SJ*06
52B890WJ*01
52B890WJ*03
52B890WJ*04
52B890WJ*05
52B890WJ*06
DX102SB*01
DX102SB*02
DX102SJ*00
DX102SJ*01
DX102SJ*02
DX102SJ*03
DX102WB*01
DX102WB*02
DX102WJ*00
DX102WJ*01
DX102WJ*02
DX102WJ*03
DX302ISJ*00
DX302ISJ*01
DX302ISJ*03
DX302ISJ*04
DX302ISJ*05
DX302SB*01
DX302SB*02
DX302SB*03
DX302SJ*00
DX302SJ*01
DX302SJ*02
DX302SJ*03
DX302SJ*04
DX302SJ*05
DX302SJ*06
DX302SJ-AA*00
DX302SJ-AA*01
DX302SJ-AA*02
DX302WB*01
DX302WB*02
DX302WB*03
DX302WJ*00
DX302WJ*01
DX302WJ*02
DX302WJ*03
DX302WJ*04
DX302WJ*05
DX302WJ*06
DX302WJ-AA*00
DX302WJ-AA*01
DX302WJ-AA*02
DX403IWB*01
DX403IWB*02
DX403IWB*03
DX403IWB*04
DX403IWB*05
DX403IWB*06
DX403SB*01
DX403SB*02
DX403SB*03
DX403SB*04
DX403SB*05
DX403SB*06
DX403SJ*00
DX403SJ*01
DX403SJ*02
DX403SJ*03
DX403WB*01
DX403WB*02
DX403WB*03
DX403WB*04
DX403WB*05
DX403WB*06
DX403WB*07
EX302SB*01
EX302SB*02
EX302SB*03
EX302SJ*00
EX302SJ*02
EX302SJ*03
EX302SJ*04
EX302SJ*05
EX302WB*01
EX302WB*02
EX302WB*03
EX302WJ*00
EX302WJ*02
EX302WJ*03
EX302WJ*04
EX302WJ*05
EX403SB*01
EX403SB*02
EX403SB*03
EX403SJ*00
EX403SJ*01
EX403SJ*02
EX403SJ*03
EX403WB*01
EX403WB*02
EX403WB*03
SB907SJ*01
SB907SJ*02
SB907SJ*03
SB907SJ*04
SB907SJ*05
SB907SJ*06
SB907SJ*07
SB907SJ*08
SB907SJ*09
SB907SJ*10
SB907WJ*01
SB907WJ*02
SB907WJ*03
SB907WJ*04
SB907WJ*05
SB907WJ*06
SB907WJ*07
SB907WJ*08
SB907WJ*09
SB907WJ*10
SB915KJ*01
SB915KJ*02
SB915KJ*03
SB915KJ*04
SB915KJ*05
SB915KJ*06
SB915KJ*07
SB915KJ*08
SB915SJ*01
SB915SJ*02
SB915SJ*03
SB915SJ*05
SB915SJ*06
SB915SJ*07
SB915SJ*08
SB915WJ*01
SB915WJ*02
SB915WJ*03
SB915WJ*04
SB915WJ*05
SB915WJ*06
SB915WJ*07
SB915WJ*08
SB925SJ*01
SB925SJ*02
SB925SJ*03
SB925SJ*04
SB925SJ*05
SB925SJ*06
SB925SJ*07
SB925SJ*08



Mains on-off switch used in some Electrolux & Dishlex Global dishwasher models.

Fits some late model Electrolux Global 302 series, 403 series, Westinghouse 907, 915, 925 and Simpson 870 & 890 series.

Small push on, push off switch 19MM X 13MM X 38MM high. 6.4MM spade terminals. Includes plastic mounting bracket. Note on some models this is originally a metal bracket. Bracket mounting holes 55MM apart.
